Microwave Belt Dryer

【Raw material】: food, sludge, tea, medicine, wood and building materials.
【Power】:15-80Kw
【Applications】:can be widely applied to agricultural products, food, medicine, chemical engineering, powder, non-ferrous metals and etc.

Product Description

  Taida MDW microwave dryer is a kind of continuous single layer microwave drying equipment which is developed based on DW belt dryer. MDW dryer consists of electrical control system, microwave heating system, material distributing system, conveying structure, moisture exhausting system, safeguard system and etc. According to real situation, there are various transmission modes for customers’ choice, such as belt, chain plate and chain. For different demands of various industries, we can provide specific designs. Also, raw materials thickness and temperature, transmission speed and microwave power can all be automatically adjusted. Taida MDW microwave dryer is a type of continuous intelligent production equipment which can realize upstream and downstream seamless connection.
nesh belt dryer
 Taida MDW dryer is mainly used to heating, drying, Heating, drying, killing, sterilizing and puffing raw materials. It is characterized by environment friendly, energy saving and efficient features. MDW can be widely applied to agricultural products, food, medicine, chemical engineering, powder, non-ferrous metals and etc.

Strength


Good abrasive resistance and long service span

When the temperature is too high, there will no oxide skin. This machine is characterized by good abrasive resistance. Therefore, it has a long service span.


Flexible temperature and discharged particle size

There are various inlet temperatures. This machine can make the materials at outlet presented as small particles or powder which provides convenience for next process.


Great handling capacity

There is a whole set of equipment which holds 10 to 200t/h output capacity. We can also customize drying machine according to customer’s demands.


Reasonble design

Reasonable design can avoid the leakage of materials.It adopts special seal structure made from tin steel piece between cover body and machine, which prevents leakage under micro negative pressure.

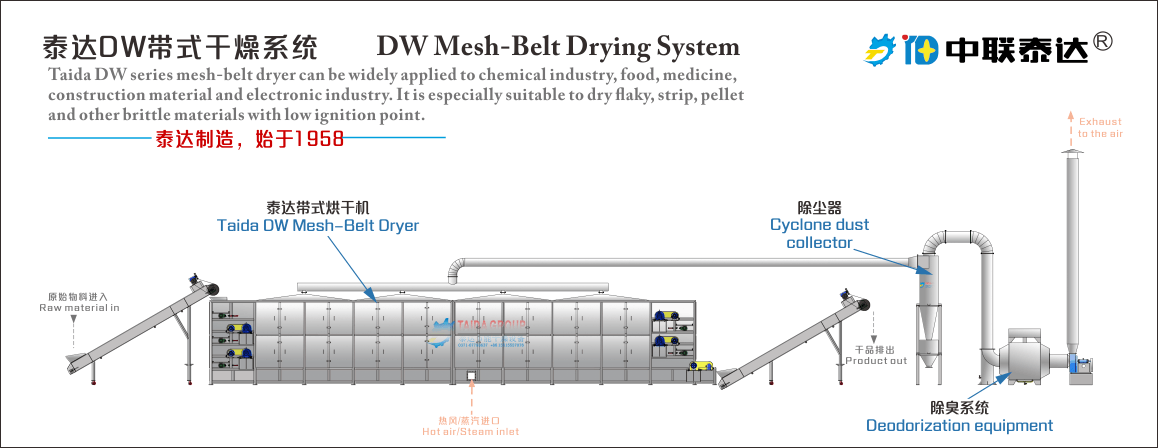

Product Line Structure

mesh belt dryer
Send E-mail
Respond To Your Email In 24 Hours
WeChat/WhatsApp
Efficient Labor Service
Online Quote
7*24h Customer Online Service

Product Feature and Application

Parameter

Model MDW-15A MDW-15B MDW-30A MDW-30B MDW-45A MDW-45B MDW-80A MDW-80B
Microwave frequency 2450±30 2450±30 2450±30 2450±30 2450±30 2450±30 2450±30 2450±30
Microwave power (kw) 15 15 30 30 45 45 80 80
Input power (kw) 17 17 32 32 47 47 82 82
Input voltage 380V 380V 380V 380V 380V 380V 380V 380V
Width of materials distributed (m) 0.6m 0.85m 0.6m 0.85m 0.6m 0.85m 0.6m 0.85m
Overall dimensions (m) 6m×1.1m×1.7m 6m×1.5m×1.7m 8m×1.1m×1.7m 8m×1.5m×1.7m 10m×1.1m×1.7m 10m×1.5m×1.7m 14m×1.1m×1.7m 14m×1.5m×1.7m
Note Proper models can be customized according to your demands. Please feel free to contact with us any time!

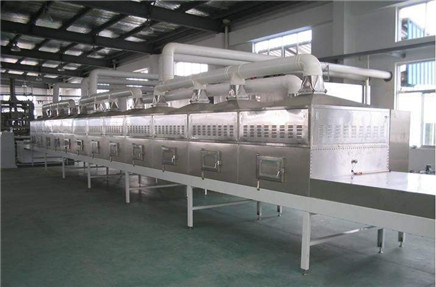

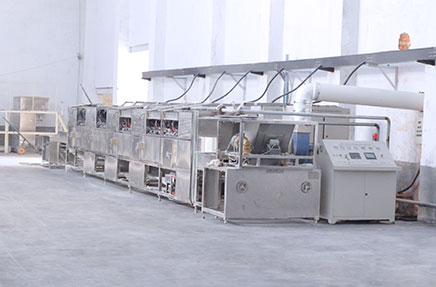

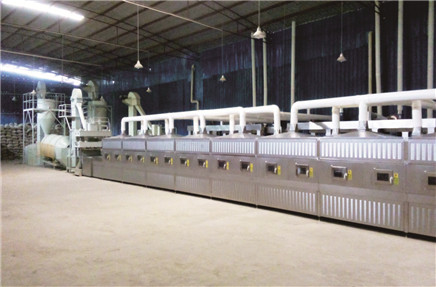

Successful Case
