Taida lRT dryer belongs to internal tube indirect heating drying series. It has great adaptability to various rawmaterials. It can be used to dry multiple materials. There is no direct contact between materials and hot air, which willprevent flue gas'pollution to raw material. Wet materials will be delivered to dryer 's feeding head by conveying
system. Dryer's main body is a rotary drum with slight inclination.Materials will be charged from higher end and heatcarrier can enter from both lower and higher end.Therefore,raw materials can contact with hot air in down steam orcounter stream form.Along with the rotation of rotary drum, material will move to the lower end under the function ofgravity. During the movement process in rotary drum, wet materials will be heated by heat carrier indirectly or
indirectly.In this way, wet materials will be dried and discharged by conveyor from outlet end.
Taida IRT'series dryer absorbs structure design of triple-pass dryer's lifting plates. It adopts combination of flycutter, material spoon, exchange wall and ring fin, which not only improves thermal efficiency, but also improves
production capacity. With less occupation area, easy installation and simple maintenance, IRT is more durable and costeffective than common dryer.

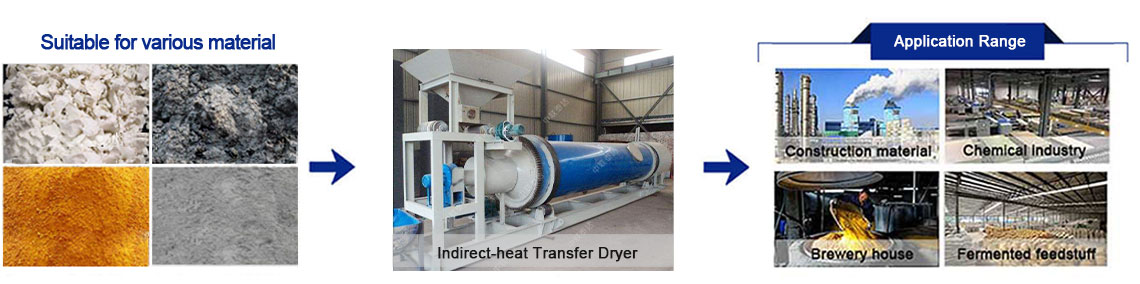

Indirect-heat transfer dryer is widely applied to building materials, metallurgy, chemical industry and cement industry to dry slags, coal powder and clay. It is mainly composed of rotary body, lifting plate, transmission device, support device and seal rings.
Taeda holds 20-year production history and 60-year skllled production team. 95& spare parts are Self-produced and external processing rate for core commponents lower than 3%.
Taeda holds a more than 100-people professional R&D team which can customize one-on-one technical support ba
Various automatic processing devices equipped in production ba
Taeda complete service system covers demand communication, contract signing, equipment delivery, on-site installation guidance and commissioning, which saves customers worries.
|
Diameter* Length of shell |
Inside diameter of outer shell (mm) |
Inside diameter of inner shell (mm) |
Shell length (m) |
Volume (m3) |
Shell obliquity (￮) |
Lifter form |
Highest inlet air temperature (℃) |
Dimensions (m) |
|
ф1.5×15m ф1.5×17m ф1.5×19m |
1500 | 500 |
15 17 19 |
20.27 22.97 25.68 |
3-5 | Lifting form | 850 |
16.2×2.7×2.7 18.2×2.7×2.7 20.2×2.9×2.9 |
|
ф1.8×21m ф1.8×23m ф1.8×25m |
1800 | 650 |
21 23 25 |
35.91 39.33 42.75 |
3-5 | Lifting form | 850 |
22.5×2.7×2.7 24.5×2.9×2.9 26.5×2.9×2.9 |
|
ф2.2×21m ф2.2×23m ф2.2×25m |
2200 | 900 |
21 23 25 |
58.10 63.61 69.15 |
3-5 | Lifting form | 850 |
Strong Processing Ability
Various automatic processing devices makes Taeda has the ability to process 17.5-m length and 100-mm thickness equpment.
Strict Quality Inspection
Taeda carries out strict quality inspection regulations which makes Taeda equipment with high output capacity and high effciency.
Standard Production
Advanced and modern production center makes equipment production process more efficient and Taeda Manufacture reliable.
Superior Process Texture
Taeda adopts superior equipment production materials which guarantees long service life and stable working performance.
