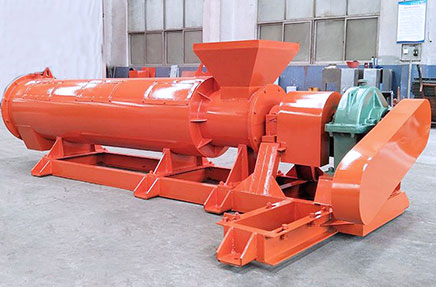

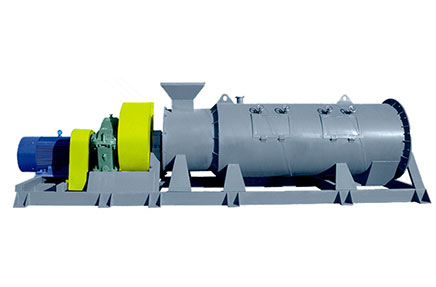

Agitator Pin Mixer Granulator

【Inupt size】: 50 mesh
【Output sizeInput moisture】: 20%-40%
【Capacity】: 0.5-5t/h
【Applicable material】: suitable to granulate light fine powder, like chicken manure, pig manure, cow dung, carbon black, kaolin and etc.

Product Description

TD9Z Series pellet wet type pelletizing/granulating machine is new fertilizer pelletizing/granulating equipment developed by Zonelion Taeda. It is also called internal rotation pin-mixer granulator widely applied for pelletizing and granulating of chicken manure, pig manure, cow dung, mineral powde,silicon fertilizer, organic fertilizer. Owing to high output capacity, smooth performance and long service life, it is a kind of ideal granulating produced well recognized by customers.

Drum diameter of TD9Z Pin Mixer Granulator ranges from 400mm to 1200mm.  With stable base seat design, Taida 9Z pin mixer granulator can work more efficient.

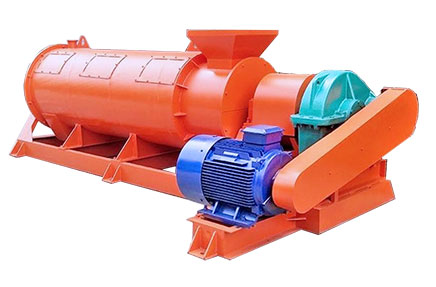

organic fertlizer pin mixer granulator

Working principle:
With the function of mechanical agitating force and pneumatic force, fine powder will be mixed, granulated, pelletized and densified. Particles are is spherical shape. Particle size can be adjusted through mixing amount and rotation speed. Generally, less the mixing amount is and faster the rotation speed is, smaller the particles will be. Vice versa.

Strength


Wide application range

Taeda TD9Z Series granulator can be used to granulate chicken manure, pig manure, cow dung, mineral powder,silicon fertlizer and organic fertilizer.


High working efficiency

Compared with other similar pin mixer granulator, Taida pin mixer granulator can produce more output products with less energy consumption amount.


Easy maintenance and simple operation

With reasonable structural design, TD9Z Series granulator is more easy to maintain and repair. Relatively, it holds lower malfunction rate and longer serivce life.


Better working performance and rational design

Compared with other granulator,Taida TD9Z Series granulator holds good working performance and rational design. Final product from Taeda TD9Z granulator is featured in strong particle strength and good quality.

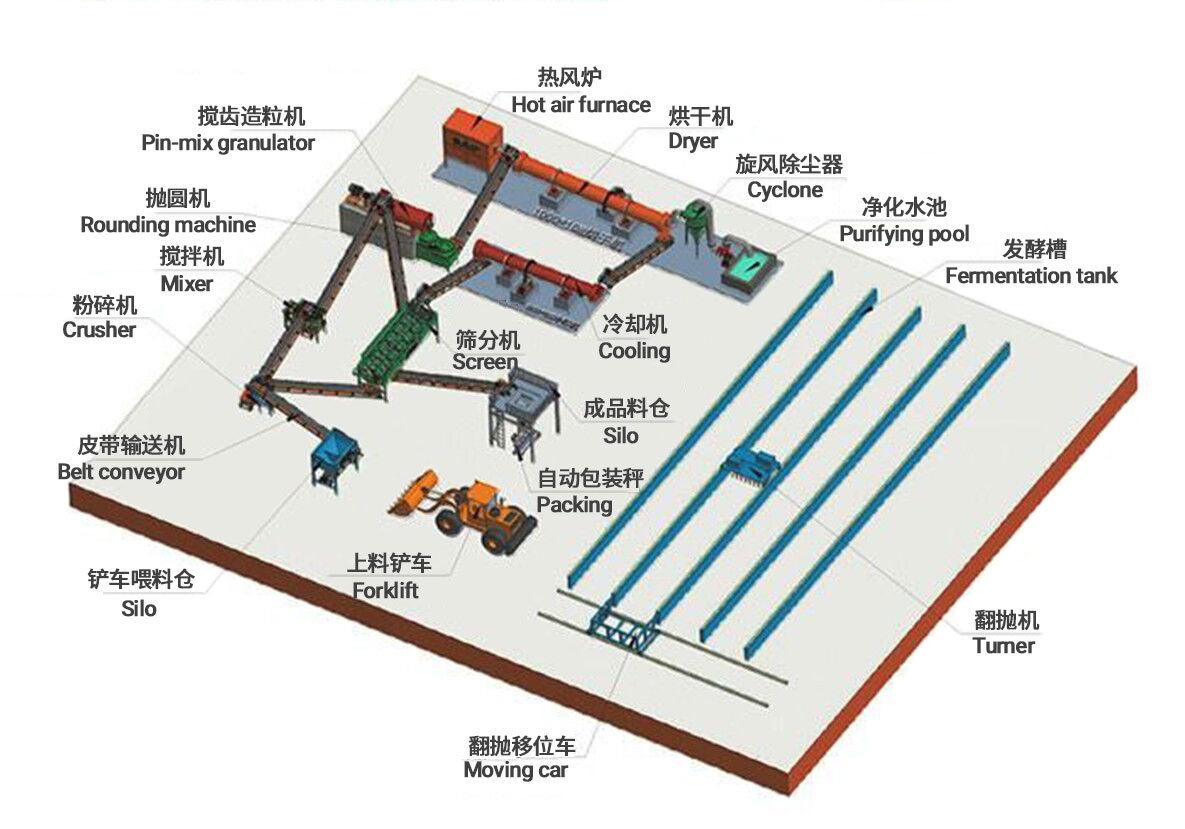

Product Line Structure

organic fertlizer pin minxer granulator
Send E-mail
Respond To Your Email In 24 Hours
WeChat/WhatsApp
Efficient Labor Service
Online Quote
7*24h Customer Online Service

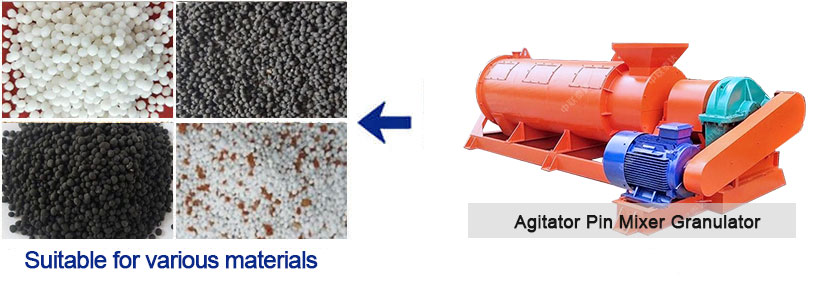

Product Feature and Application

Parameter

Specifictions  Diameter Capacity Power Input moisture Input size Overall dimensions (L*W*H)
TD9Z-40 400 0.5-1.0t/h 22kw 20%-40% 50Mesh 4000*1350*1010
TD9Z-60 600 1-1.5t/h 37kw 20%-40% 50Mesh 4100*1600*1150
TD9Z-80 800 1.5-2t/h 55kw 20%-40% 50Mesh 4250*1850*1300
TD9Z-100 1000 2-3t/h 75kw 20%-40% 50Mesh 4700*2350*1600
TD9Z-120 1200 3-5t/h 90kw 20%-40% 50Mesh 4900*2550*1800
