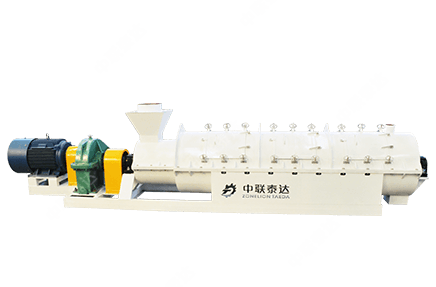

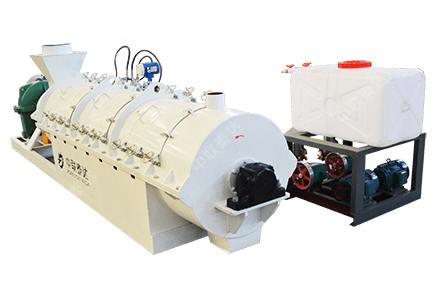

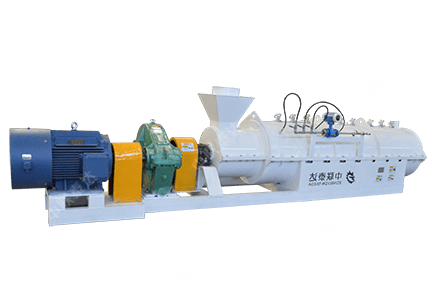

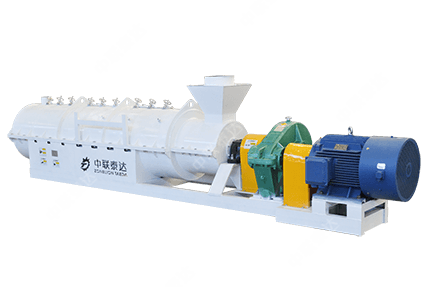

Carbon Black Pin Mixer Granulator

【Inlet moisture】:  <5%
【Output size】:  1-5mm in diameter
【Capacity】:  1-3t/h(2-6m3/h)
【Applicable material】: Pin mixer granulator is ideally suited for micro-pelletizing, agglomerating or conditioning powdered materials, such as carbon black, graphite and carbon nato tube.

Product Description

  Taida 8D series pin mixer granulator is updated granulating machine specially designed for carbon black. We developed this kind of pin mixer granulator under entrust of Special Carbon Research Institute. In terms of appearance, 8D series pin mixer granulator is similar to common 9Z series type machine. But their pelletizing/granulating mechanism and design details are totally different.

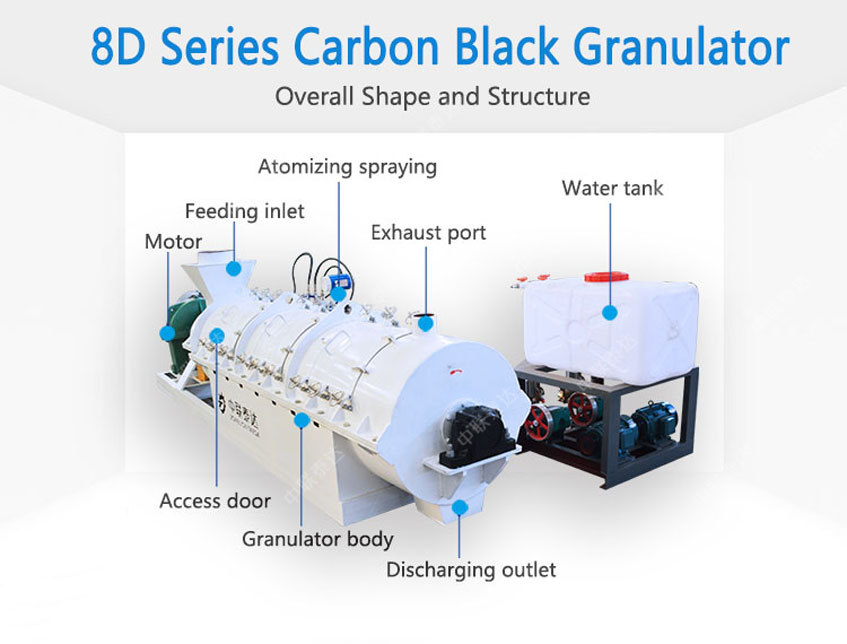

carbon black granulating machine

  Working principle of 8D series pin mixer granulator: under the function of the surface tension of liquid binder, fine powder gather together and form spherical shape owing to rolling and collision. We designed optional steam jacket for 8D series pin mixer granulator, quick-open door and automatic power adjustment system for pin-mixing shaft. Whole series pelleting/granulating drums are lined with stainless steel. Mixing teeth can be set with replaceable abrasion-resistant alloy head.

Strength


Wide application range

Taida pin mixer granulator can be used to granulate carbon black, graphite , carbon nano tube and etc. It is widely applied for dyeing, rubber, tire and electrode field.


Supply Ability for Whole Production Line

Besides pin mix granulator , Taida can also provide full set equipment before granulating process like drying, grinding, screening and packaging.


Easy maintenance

With reasonable structural design, Taida pin mixer granulator holds lowwer malfunction rate and longer serivce life.


Final products with good final appearance

Final particle are small granules shape with homogenous size; The size of final products can be adjusted.



Product Line Structure

carbon back pin mixer granulating process
Send E-mail
Respond To Your Email In 24 Hours
WeChat/WhatsApp
Efficient Labor Service
Online Quote
7*24h Customer Online Service

Product Feature and Application

Parameter

Model Diameter Power Capacity
m3/h
Steam Jacket Mist spray unit Weight
8D300 300 30kw 1.13 Optional 4 Group 1.2
8D400 400 37kw 2.83 Optional 6 Group 1.6
8D500 500 37-45kw 5.1 Optional 6 Group 2.4
8D600 600 55-75kw 6.37 Optional 8 Group 3.3
8D900 900 110kw 10.33 Optional 8 Group 4.7
8D1000 1000 185kw 15.57 Optional 8 Group 8.4
