【Fuel】: Biomass pellet, coconut shell, palm shell, peanut shell , PKS, small lump coal, broken charcoal and small particle biomass item.
【Fuel consumption】: 42-700kg/h
【Heating thermal power】: 600,000-2400,000 kcal/hour
【Application range】: Widely used in all kinds boilers, dryer machine, industrial furnace and other heat source industries.
Taeda® third generation biomass pellet burner is improved and upgraded based on years' experience accmulation. It regards biomass pellet materials as fuel. In terms of cooling mode, it belongs to a kind of air cooling burner. In terms of thermal output, it is classified into two types, ①ash tray burner (＜400000kcal); ② burning nozzle type (＞600000kcal). According to flame direction, it is classified into horizontal flame and upward flame.

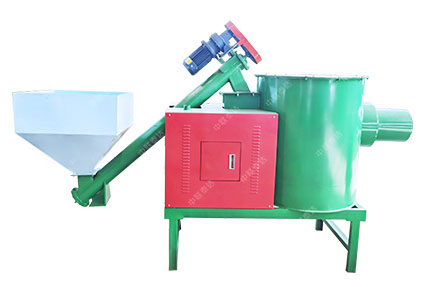

Whole burner consists of storing hopper,conveyor,combustion chamber,burning nozzle,auxiliary ignition and control unit.
Taeda new biomass burner holds wide application range and can be used to provide heat and temperature for various industrial working scenes like drying equipment, highway road construction machinery, industry annealing furnace, coating line, enterprise oven boiler, small power station, boiler and industrial stoves. The new burner is mainly upgraded for control system and combustion effect. Because of full combustion and high thermal efficiency, there is almost no smoke produced during the burning process. Besides, Taeda new biomass burner is installed with automatic temperature control. Meanwhile, we provide manual and automatic feeding device for customers' options.
Multi-fuel options:Burn various kinds of biomass raw material or molding biomass particles(wheat straw, rice straw,corn stalks ,corn cobs, peanut shells, cotton,stalks, branches,leaves, bark,roots,wood chips,bamboo powder,sawdust and other leftovers).
| Model | Thermal output (Kcal/h) | Electricity consumption(kw) | Fuel consumption (kg) | burning nozzle center distance | Burning nozzle diameter（mm） | Overall dimension |
| （mm） | （mm） | |||||
| BRS 45 | 450,000 | 1.9 | 25-120 | 830 | 120 | 1850×700×1800 |
| BRS 60 | 600,000 | 2.5 | 40-170 | 930 | 170 | 2000×700×1850 |
| BRS90 | 900,000 | 2.6 | 60-240 | 930 | 219 | 2100×800×1880 |
| BRS120 | 1,200,000 | 3 | 80-350 | 1050 | 245 | 2800×1000×2300 |
| BRS180 | 1,800,000 | 5.5 | 100-550 | 1150 | 273 | 2800×1200×2500 |
| BRS240 | 2,400,000 | 7.5 | 130-700 | 1150 | 325 | 3200×1200×2500 |
General heat source
suitable for a variety of heat sources, not restricted by heat source
Low operating costs
Low energy consumption and low operating costs
Environmental protection
use various of dust collectors to meet local environmental standards
Quality control
High-precision process equipment, strict quality control
Support customization
customized equipment according to customer needs
Technical guidance
professional and technical personn-el on-site guidance operation
Automatic operation
automatic operation, simple operati-on and saving manpower
