【Volume】: 3-100m3, support customization
【Function】:temporarily store materials and continuous and uniform feeding.
【Shape】:
【Output capacity】:0.2-50t/h

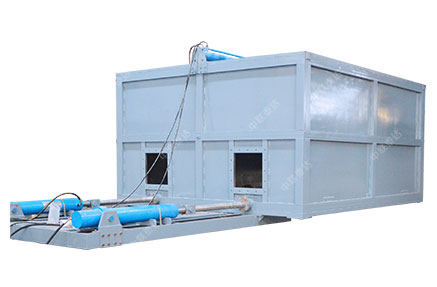

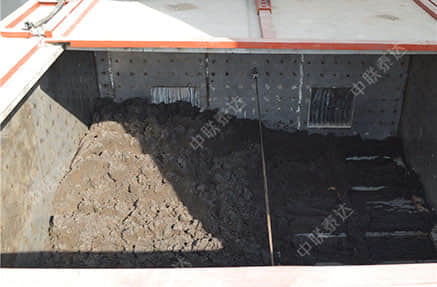

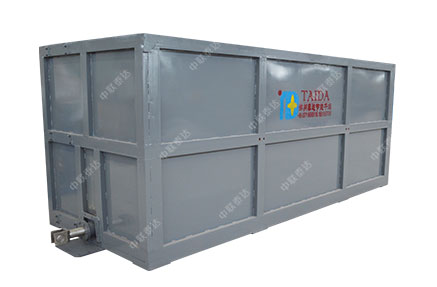

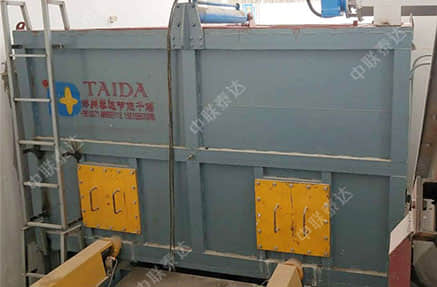

Taeda push-floor silo is suitable for viscous materials, specially designed for sludge drying treatment, used for connecting the treatment of pressure filtration dehydration, centrifugal dehydration, stacking screw machine dehydration and other method produce sludge with a moisture content of 45-80%, used as the medium dump bin.
The design of this silo is an innovation of the traditional feed silo. The hydraulic system is applied to the rectangular flat bottom silo to discharge the materials stored in the flat bottom silo. The silo can be designed into a variety of tubular, rectangular, polygonal and other structures, covering a small area, large capacity. In addition to dewatering sludge, it can also be used for other liquid or non-liquid materials, such as coal slime, gypsum, etc. Zonelion Taeda professional wisdom and years of experience is worthy of your trust!
Model | Volume | Shape | Discharging screw | |
Motor | Qty. | |||
PFSF-C | 10m3 | Rectangle | 0.75-2.2 | 1 |
PFSF-C | 20m3 | Rectangle | 0.75-2.2 | 2 |
PFSF-C | 40m3 | Rectangle | 1.5-4.5 | 2 |
PFSF-O | 6m3 | Cylinder | 0.75-2.2 | 1 |
PFSF-O | 12m3 | Cylinder | 0.75-2.2 | 1 |
