【Volume】: 0.5-30t
【Function】:temporarily store materials and feed materials to next step.
【Diameter】:
【Capacity】:0.7-50t/h

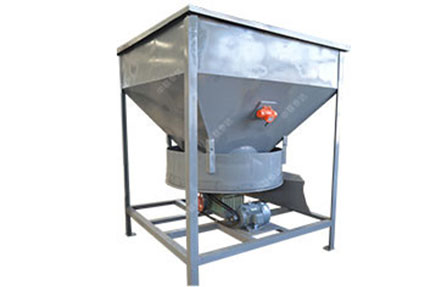

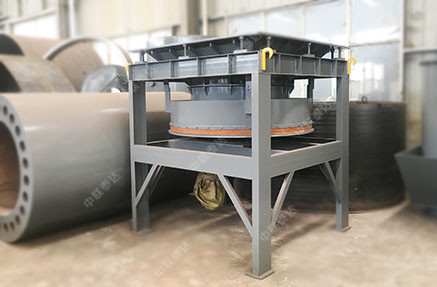

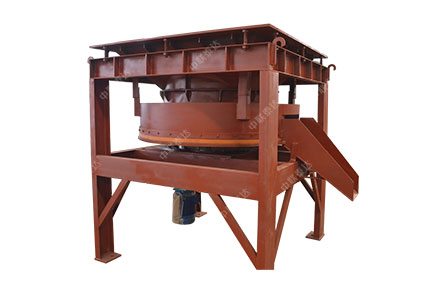

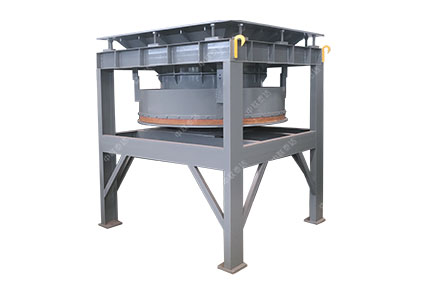

Taeda disc feeder is a kind of feeding equipment by volume measurement. It can uniformly and continuously feed raw materials to next step. It is suitable to feed non-viscous materials like quartz sand, silicon carbide, slag, ore powder, etc. Through cylinder gear reducer with different speed ratio, motor of disc feeder will drag disc body with different diameters. This kind of disc feeder is mainly used for coal, beneficiation, construction material and electricity industries.It is common auxiliary equipment for grinding mill and drying machine.
| Model | Type | Diameter(mm) | Capacity (T/h) | Speed (r/min) | Feeding Size (mm) | Motor | |
| Type | Power (kw) | ||||||
| FDK600 | Open wide | 600 | 0.69-3.9 | 8 | <25 | Y90L-6 | 1.1 |
| FDK800 | Open wide | 800 | 2.4-12 | 12 | <25 | Y90L-4 | 1.5 |
| FDK1000 | Open wide | 1000 | 10 | <25 | Y100L1-4 | 2.2 | |
| FDK1250 | Open wide | 1250 | 4.2-22 | 10 | <80 | Y112M-4 | 4 |
| FDK1500 | Open wide | 1500 | 8 | <80 | Y112M-4 | 4 | |
| FDK2000 | Open wide | 2000 | 8-42 | 8 | <80 | Y132M-4 | 7.5 |
| FDK2500 | Open wide | 2500 | 10-50 | 8 | <80 | Y180M-4 | 18.5 |
