【Volume】: 4-24m3, support customization
【Function】:temporarily store materials
【Feature】:
【Applicable material】:biomass materials like spent grain, rice husk, wood chips, sawdust and other similar materials.

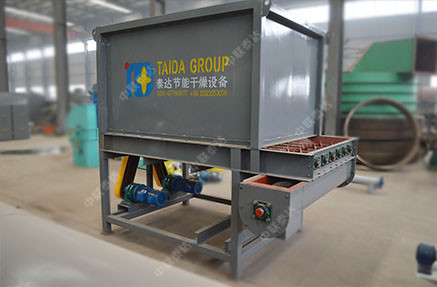

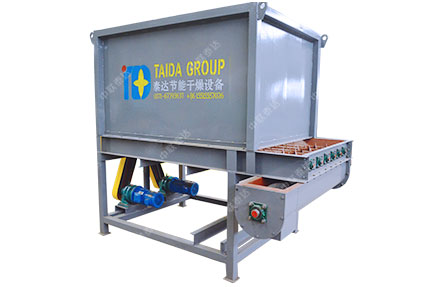

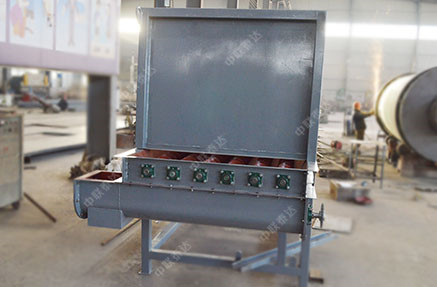

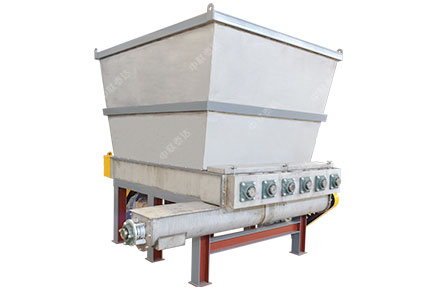

LCMS multi-shaft arch breaking silo is a special storage silo designed and developed by Taida Company for biomass materials. Suitable for biomass materials such as: liquor grains, rice husks, wood chips, wood shavings, etc.
LCMS multi-shaft arch breaking silo consists of two parts: the silo body and the arch breaking device. Driven by multiple broken arch shaft, the material moves evenly toward the discharging end. In this process, the bridge arch can be effectively avoided and the discharging can be smooth, so that the material can be evenly transported into the conveying equipment of the next process. The equipment adopts the overall modular structure, easy to transport and lift, compact structure, small occupation of land, stable operation, can ensure continuous feed to the downstream equipment.
Model | Volume | Arch breaker system | Breaker Screw | Discharging screw | Dimensions |
Spiral number | Motor | Motor | L×W×H | ||
LCMS-4 | 4m3 | 4 | 6-9KW | 2.2-3KW | 2*1.5*2M |
LCMS-8 | 8m3 | 4 | 6-9KW | 2.2-4.5KW | 2*1.5*3M |
LCMS-10 | 10m3 | 6 | 9-11KW | 3-4.5KW | 2*3*2M |
LCMS-24 | 24m3 | 6 | 9-15KW | 3.-5.5KW | 2*3*4M |
