【Fuel type】: Natural gas/LPG/Biogas/coal gas/carbonization gas
【Fuel consumption】: 1.5-430NM3/h
【Temperature output】: 60-950℃
【Customization】: Support customization of larger specifications

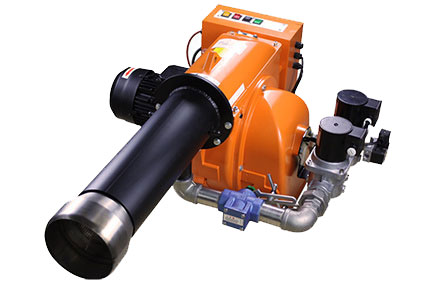

With the emphasis on environment protection, coal combustion is widely banned in majority areas. Correspondingly, gas are more and more popular for different industrial production lines, like rotary drying lines, rotary kiln line or boiler use. Compared with coal combustion, gas burner is is more clean and thermal efficiency is much higher. Whole working site with less smoke and dust, workers can operate in a good circumstance. We can configure either gas burner according to customers' real situation.
Taeda has established long term cooperation relation with famous burner manufacturer. Therefore, we can provide Italy Baltur, Riello, Germany Weishaupt and other various series gas burner. The Chinese Brand we provide are with superior quality and our supply scope ranges from gasification furnace, pressure regulating valve, burne , industrial burning nozzle, control cabinet and burner auxiliary components.
Model | Fuel | Consumption | Power supply | Working mode | Thermal output |
Nm3/h | 3PH | Kw | |||
10 |
Natural gas/ LPG/Biogas/ Coal gas/ carbonization gas |
1.5-11.5 | 380-460V,50/60hz | Two-stage fire | 15-115 |
20 | 5-20.5 | Support customization | Two-stage fire | 50-205 | |
40 | 8-45 | 380-460V,50/60hz | Two-stage fire/proportion adjust | 81-450 | |
60 | 12-60 | Support customization | Two-stage fire/proportion adjust | 120-600 | |
80 | 17-85 | 380-460V,50/60hz | Two-stage fire/proportion adjust | 170-850 | |
100 | 24-120 | Support customization | Two-stage fire/proportion adjust | 240-1200 | |
150 | 30-150 | 380-460V,50/60hz | Two-stage fire/proportion adjust | 300-1500 | |
210 | 40-210 | Support customization | Two-stage fire/proportion adjust | 400-2100 | |
260 | 50-260 | 380-460V,50/60hz | Two-stage fire/proportion adjust | 500-2600 | |
310 | 65-310 | Support customization | Two-stage fire/proportion adjust | 650-3100 | |
350 | 93-360 | 380-460V,50/60hz | Two-stage fire/proportion adjust | 900-3600 | |
450 | 50-430 | Support customization | Two-stage fire/proportion adjust | 500-4300 | |
Note: | We can customize larger model and please contact for details. |
General heat source
suitable for a variety of heat sources, not restricted by heat source
Low operating costs
Low energy consumption and low operating costs
Environmental protection
use various of dust collectors to meet local environmental standards
Quality control
High-precision process equipment, strict quality control
Support customization
customized equipment according to customer needs
Technical guidance
professional and technical personn-el on-site guidance operation
Automatic operation
automatic operation, simple operati-on and saving manpower
