【Fuel type】: Light oil, diesel, heavy oil, waste cooking oi, waste oil, pyrolysis oil
【Fuel consumption】: 5-460kg/h
【Temperature output】: 60-950℃
【Customization】: Support customization of larger specifications

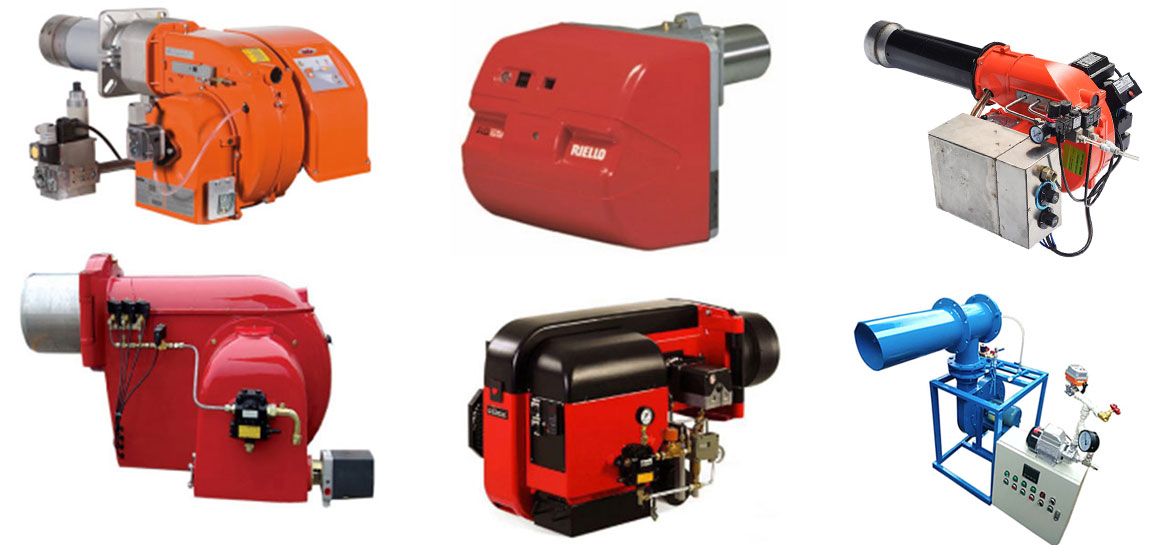

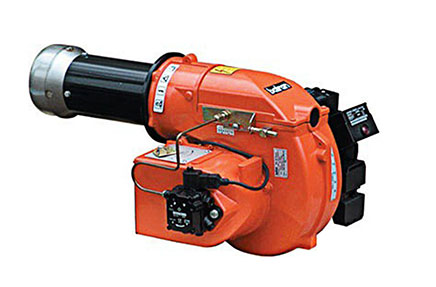

Oil burner is a burner using diesel, waste oil or heavy oil as main fuel. It is widely used in varies manufacturing area like drying production lines, rotary calcining production lines or provide heat for various boilers. It is one of the moost stable and efficient heat source fuel. We always configure customers with oil combustion system for heat source system. Both oil combustion systems are very stable heat provider for our rotary dryer and rotary kiln system.
Besides oil burner from famous supplier, Taeda can also provide waste oil burner which holds good heating effect through years' practice. Waste cooking oi, waste oil, pyrolysis oil and biomass oil can also be used as fuel.
| Model | Fuel | Oil constumption | Power source | Working mode | Thermal output |
| kg/h | 3PH | kw | |||
| 10 |
Diesel/ heavy oil/ waste oil |
5.1-10 | 380-460V,50/60hz | Two-stage fire | 60-118 |
| 20 | 10-22 | Support customization | Two-stage fire | 110-260 | |
| 40 | 16-38 | 380-460V,50/60hz | Two-stage fire/proportion adjust | 160-450 | |
| 60 | 21-50 | Support customization | Two-stage fire/proportion adjust | 250-600 | |
| 80 | 17-72 | 380-460V,50/60hz | Two-stage fire/proportion adjust | 200-850 | |
| 100 | 27-89 | Support customization | Two-stage fire/proportion adjust | 533-1200 | |
| 150 | 42-135 | 380-460V,50/60hz | Two-stage fire/proportion adjust | 500-1600 | |
| 210 | 68-177 | Support customization | Two-stage fire/proportion adjust | 800-2100 | |
| 260 | 74-270 | 380-460V,50/60hz | Two-stage fire/proportion adjust | 870-3188 | |
| 310 | 110-325 | Support customization | Two-stage fire/proportion adjust | 1000-3850 | |
| 350 | 115-350 | 380-460V,50/60hz | Two-stage fire/proportion adjust | 1360-4150 | |
| 450 | 156-468 | Support customization | Two-stage fire/proportion adjust | 1840-5520 | |
| Note： | We can customize larger model and please contact for details. | ||||
General heat source
suitable for a variety of heat sources, not restricted by heat source
Low operating costs
Low energy consumption and low operating costs
Environmental protection
use various of dust collectors to meet local environmental standards
Quality control
High-precision process equipment, strict quality control
Support customization
customized equipment according to customer needs
Technical guidance
professional and technical personn-el on-site guidance operation
Automatic operation
automatic operation, simple operati-on and saving manpower
