【Capacity】:
【Feeding moisture】: <75%
【Heat source】: Coal, oil, natural gas, timber

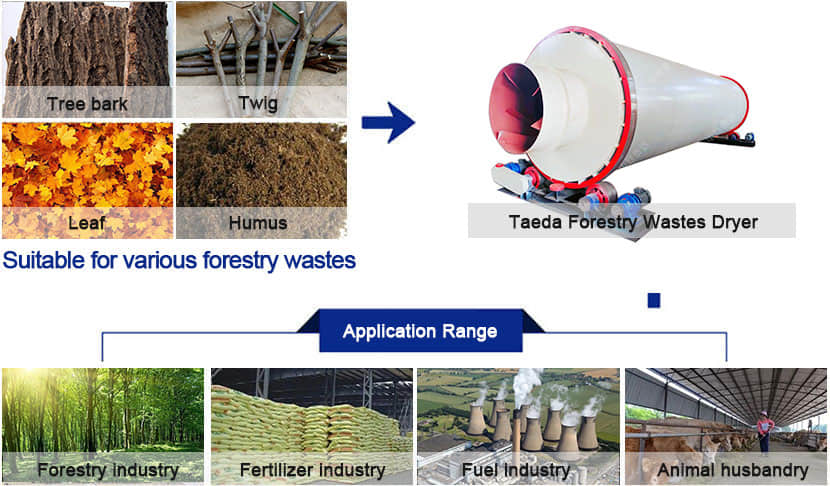

【Applicable material】: Forestry waste dryer is suitable for drying Biomass Material, sawdust, grazing, leaves, fallen leaves, biogas residue, Humus soiland and other similar Forestry Waste.

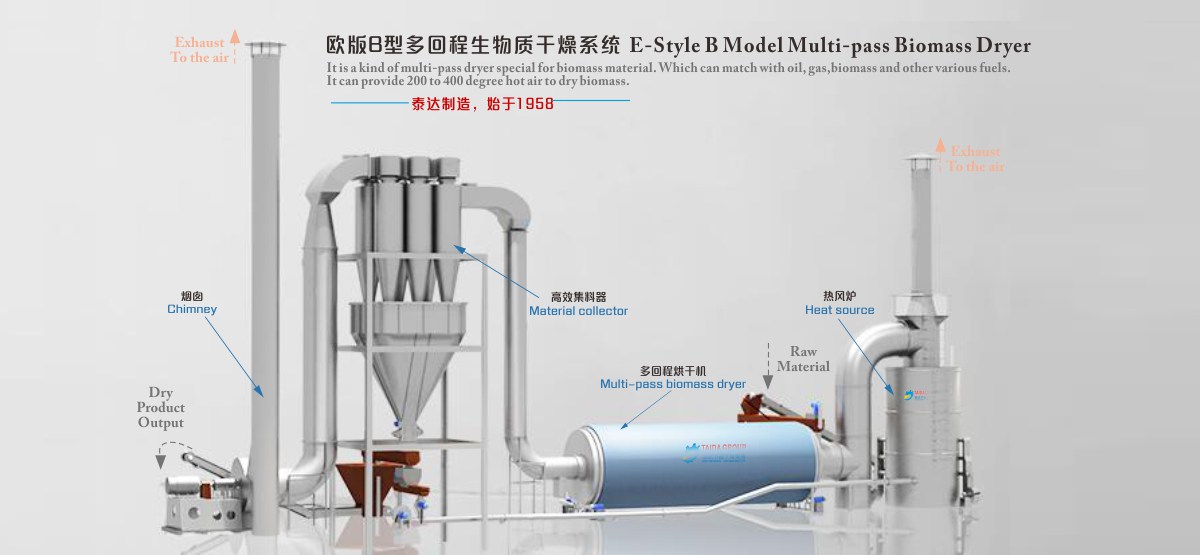

Taida forestry wastes dryer is specially designed to deal with various forestry Wastes, like sawdust, grazing, leaves, fallen leaves, biogas residue, Humus soil and and other wooden wastes. Based on OSB triple-pass light materials drum dryer, Taeda technical team made new technical designs and adjustments aimed at new features for drying forest waste materials. With new structure, these waste materials can be efficiently dried by Taeda forestry wastes dryer.
Taeda forestry wastes triple-pass dryer is characterized by following features:
1. Forestry waste dryer machine has adjusting equipment between stove and dryer, which can adjust wind blowing to dryer according to raw materials humidity and temperature when hot air going out from stove.
2. Forestry waste dryer machine is suitable for drying small diameter raw material less than 30mm in particular. Meanwhile, it also can be used to dry larger stem directly. That is to say, Taeda forestry waste dryer can ou can dry the fresh grass can be dried directly by Taeda forestry waste dryer without being cut into powder.
3. Forestry waste dryer is designed with many models whose capacity range from 300kg/h to 20,000kg/h. It can be used to dry forestry waste materials with 65% moisture.
4. There are two ways for Taeda forestry waste dryer machine to discharging dried products. One is from rotary drum bottom of discharging end. This way fits for large weight ratio materials. The other way is from cyclone bottom. This way fits for light ratio materials. So please tell us types and dimensions of your raw material, then we will help you choose best dryer model.
As a professional manufacturer with long history for providing forestry wastes material dryer, Taeda forestry wastes dryer can maintain longer service life and low investment cost while guaranteeing good drying performance.
Modular dust collecting and purifying heat recycling configuration, safe and protect environmental. Relatively, running cost of Forestry waste dryer is lower.
There are various inlet temperatures. This machine can make moisture of final product reach to standard for long-term storage which provides convenience for next process.
There is a whole set of equipment which holds 10 to 200t/h output capacity. We can also customize drying machine according to customer’s demands.
After times' upgrading and improvement, no matter in terms of energy consumption or capacity, Taeda Forestry Waste Dryer holds better performance than common rotary drum dryer.
Item | TDOSB-T | TDOSB-T | TDOSB-T | TDOSB-T | TDOSB-T | TDOSB-T | TDOSB-T | TDOSB-T | TDOSB-T | TDOSB-T |
Diameter (mm) | 2500 | 2500 | 3000 | 3000 | 3000 | 3600 | 3600 | 3600 | 4200 | 4200 |
Length (mm) | 8000 | 10500 | 10500 | 13000 | 15500 | 13000 | 15500 | 18500 | 15500 | 18500 |
Capacity (t/h) | 2 | 3 | 4.5 | 5.5 | 6.5 | 9 | 10 | 12 | 13.5 | 16.8 |
Drying Type |
Three pass drum dryer |
|||||||||
Note |
Proper models can be customized according to your demands. Please feel free to contact with us any time! |
