Fuel consumption and electricity consumption of Taeda corncob dryer is 10% to 15% lower than common drum dryer. Capacity is 10% to 15% higher than common dryer. It can be used to reduce moisture of wet corncob from 75% to 5%12% one time. While designing process, Taeda considers from application of final product and analyzes requirements for its fertilizer and feedstuff application. Therefore, Taeda corncob dryer can transfer corncob wastes into resources, produces good social benefit, ecological benefit and economic benefit.
>>Corncob dryer working process

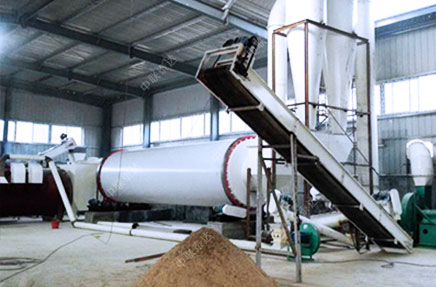

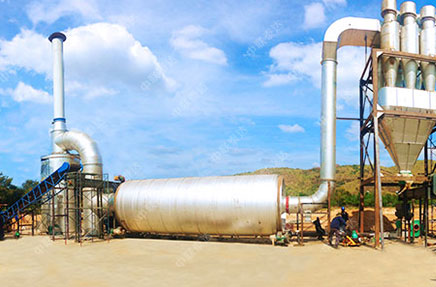

Corncob dryer mainly consists of heat source, feeder, rotary dryer, material crushing device, discharging device, ID fan, discharger and electrical cabinet. Under the turning of internal lifting plates, materials will evenly scatter and fully contact with hot air, which speeds up heat and mass transfer process. During drying process, under the function of inclined lifting plates and hot air media, dried corncob will be discharged from discharging valve as final products.
Taeda corncob dryer fully takes features of crushed corncob into consideration during designing process like flying dust and easy burning. Inner structure of dryer drum is re arranged so that to solve difficulties for drying corncob. Whole corncob drying system is featured in simple operation, smooth production, large capacity and low energy consumption.
Taeda corncob dryer adopts new drying concept which can meet continuous drying requirements of wet corncob and make final products more suitable for Corncob production. Whole drying and dehydration process is gentle and final product holds better quality.
Taeda corncob dryer adopts multiple pass drum structure and scientific design. For same capacity, its total length is only one third of long rotary drum dryer. Therefore, Taeda corncob dryer holds small footprint and its heat radiating area is smaller than common dryer. With high energy utilization and low thermal loss, it is more energy saving.
Whole drying system holds flexible configuration. We can configure dewatering equipment, feeder, crusher, heat source, conveying, dust collecting, elevation, cooler and packing unit. Professional team provides one-step service amd customizes suitable equipment ba
| Item | TDOSB-T | TDOSB-T | TDOSB-T | TDOSB-T | TDOSB-T | TDOSB-T | TDOSB-T | TDOSB-T | TDOSB-T | TDOSB-T |
| Diameter (mm) | 2500 | 2500 | 3000 | 3000 | 3000 | 3600 | 3600 | 3600 | 4200 | 4200 |
| Length (mm) | 8000 | 10500 | 10500 | 13000 | 15500 | 13000 | 15500 | 18500 | 15500 | 18500 |
| Capacity (t/h) | 2 | 3 | 4.5 | 5.5 | 6.5 | 9 | 10 | 12 | 13.5 | 16.8 |
| Drying Type |
Three pass drum dryer |
|||||||||
| Note |
Proper models can be customized according to your demands. Please feel free to contact with us any time! |
|||||||||
