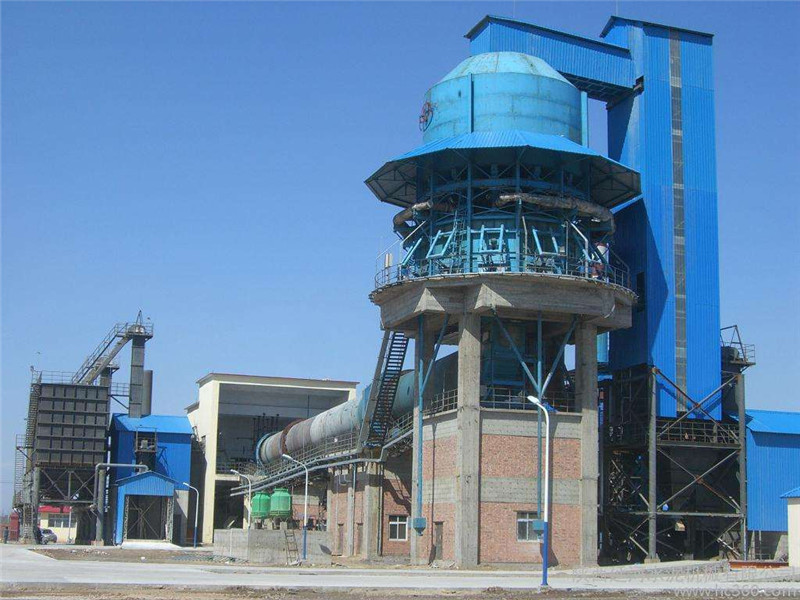

【Type】: Rotary kiln
【Calcination temperature】: 900-1450℃
【Capacity】:150-10000t/day
【Material】:sponge iron,iron ore,nickle ore,chrome,magnesium ore,bauxite ore,other non-ferrous metal

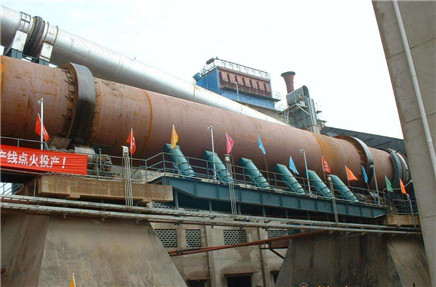

Metallurgy rotary kiln is mainly used in metallurgical industry, steel and iron plants lean iron ore magnetic roasting; chromium, nickel iron oxidizing roasting; refractory material factory roasting high alumina bauxite and aluminum factory roasting clinker, aluminum hydroxide, chemical plant roasting chromium ore, chrome sand etc minerals.
| Specifications (m) | Dimensions | Motor power (kw) | Total weight (t) | ||||
| Diameter (m) | Length (m) | Inclination (%) | Output (t/d) | Rotary speed (r/min) | |||
| Φ2.5×40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | 149.61 |
| Φ2.5×50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 187.37 |
| Φ2.5×54 | 2.5 | 54 | 3.5 | 204 | 0.48-1.45 | 55 | 196.29 |
| Φ2.7×42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | 198.5 |
| Φ2.8×44 | 2.8 | 44 | 3.5 | 400 | 0.437-2.18 | 55 | 201.58 |
| Φ3.0×45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 | 210.94 |
| Φ3.0×48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 | 237 |
| Φ3.0×60 | 3 | 60 | 3.5 | 300 | 0.3-2 | 100 | 310 |
| Φ3.2×50 | 3.2 | 50 | 4 | 1000 | 0.6-3 | 125 | 278 |
| Φ3.3×52 | 3.3 | 52 | 3.5 | 1300 | 0.266-2.66 | 125 | 283 |
| Φ3.5×54 | 3.5 | 54 | 3.5 | 1500 | 0.55-3.4 | 220 | 363 |
| Φ3.6×70 | 3.6 | 70 | 3.5 | 1800 | 0.25-1.25 | 125 | 419 |
| Φ4.0×56 | 4 | 56 | 4 | 2300 | 0.41-4.07 | 315 | 456 |
| Φ4.0×60 | 4 | 60 | 3.5 | 2500 | 0.396-3.96 | 315 | 510 |
| Φ4.2×60 | 4.2 | 60 | 4 | 2750 | 0.4-3.98 | 375 | 633 |
| Φ4.3×60 | 4.3 | 60 | 3.5 | 3200 | 0.396-3.96 | 375 | 583 |
| Φ4.5×66 | 4.5 | 66 | 3.5 | 4000 | 0.41-4.1 | 560 | 710.4 |
| Φ4.7×74 | 4.7 | 74 | 4 | 4500 | 0.35-4 | 630 | 849 |
| Φ4.8×74 | 4.8 | 74 | 4 | 5000 | 0.396-3.96 | 630 | 899 |
| Φ5.0×74 | 5 | 74 | 4 | 6000 | 0.35-4 | 710 | 944 |
| Φ5.6×87 | 5.6 | 87 | 4 | 8000 | Max4.23 | 800 | 1265 |
| Φ6.0×95 | 6 | 95 | 4 | 10000 | Max5 | 950×2 | 1659 |
Strong Processing Ability
Various automatic processing devices makes Taeda has the ability to process 17.5-m length and 100-mm thickness equpment.
Strict Quality Inspection
Taeda carries out strict quality inspection regulations which makes Taeda equipment with high output capacity and high effciency.
Standard Production
Advanced and modern production center makes equipment production process more efficient and Taeda Manufacture reliable.
Superior Process Texture
Taeda adopts superior equipment production materials which guarantees long service life and stable working performance.
