【Production Capacity】: 0.3-4TPH
【Ring Model Diameter】: 450-850
【Motor Power】: 55-315kw
【Application Material】: Straw, Saw Dust, Wood Shavings, Bamboo powder, Rice Hulls, Corn Straw, Tree Bark, Peanut Hull, Crop Straw, etc.

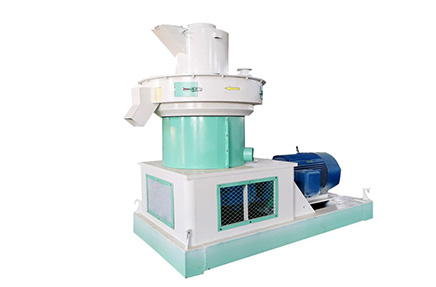

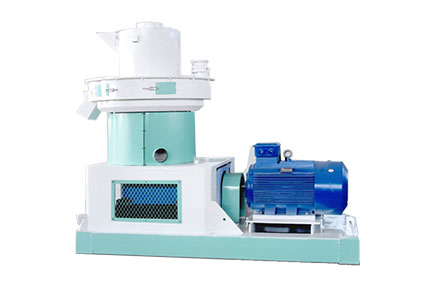

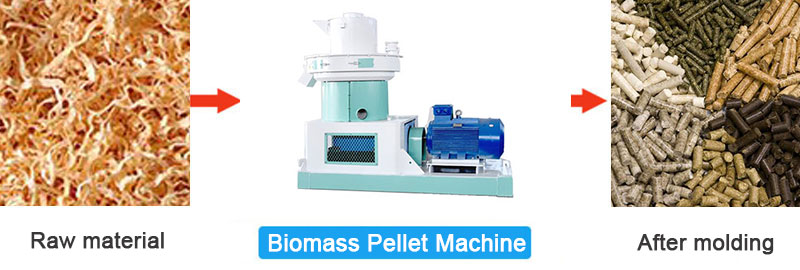

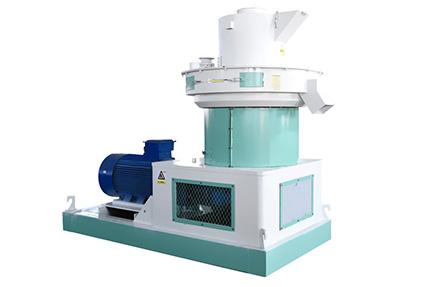

Wood/Biomass pellet machine can be used to process various kinds of material like sawdust, paddy straw, sun flower stalk, hulls, forestry wastes, wood chips, tree branches, tree barks, tree stumps, crop straws, brewer's grains, cotton hulls and many other wastes or solid powder materials. As a kind of environment-friendly and efficient fuel, Taeda biomass pellets are extruded by the combination of press rollers and ring die work under normal temperature conditions in a biomass pellet mill, with the original bulk density of 130kg/m3 and final density of 1100kg/m3, the latter of which is conducive to pellet transportation and storage and a higher fuel value.
Taeda holds 20-year production history and 60-year skllled production team. 95& spare parts are Self-produced and external processing rate for core commponents lower than 3%.
Taeda holds a more than 100-people professional R&D team which can customize one-on-one technical support ba
Various automatic processing devices equipped in production ba
Taeda complete service system covers demand communication, contract signing, equipment delivery, on-site installation guidance and commissioning, which saves customers worries.
| Model | Power(kw) | Capacity(t/h) | Ring Model Diameter(mm) | Particle Size (mm) |
Dimensions (mm) |
Weight(t) |
| TDBPM 450 | 55 | 0.3-1 | 450 | Φ4-Φ12 | 2200×900×1600 | 3 |
| TDBPM 560 | 75/90 | 0.7-1.5 | 560 | Φ4-Φ12 | 2600×1300×2300 | 6.3 |
| TDBPM 680 | 110/132/160 | 2-2.5 | 680 | Φ4-Φ12 | 3200×1400×2400 | 8.5 |
| TDBPM 850 | 220/315 | 3-4 | 850 | Φ4-Φ12 | 3750×1650×3250 | 12.6 |
