Wet Scrubbing Tower
Process capacity】:1000mg/cubic meters dense smoke;
Feature】:Less resistance, good insulation and reliable performance;
Application】:metallurgy, building materials and light industries;

Product Description

Wet scrubber is the use of the role of water or other liquids and dust gas dust removal equipment, dust and spray water droplets, water film or wet arm when the device encounters occurred wetting, condensation, diffusion and sedimentation processes, thus separated from the gas out of the gas to purify the purpose. Wet scrubber water as a vehicle, so it is suitable for non-fibrous, can be affected by the cold water and no chemical reaction of dust and gas, not to remove sticky dust. Wet scrubbers have low investment, simple operation, small footprint, can purify the harmful gas, dust humidification and cooling gas, etc. at the same time. Especially suitable for handling high temperature and high humidity and potentially explosive gas purification, but because of the use of water pollutants, sewage mud must be addressed, otherwise it may lead to secondary pollution.

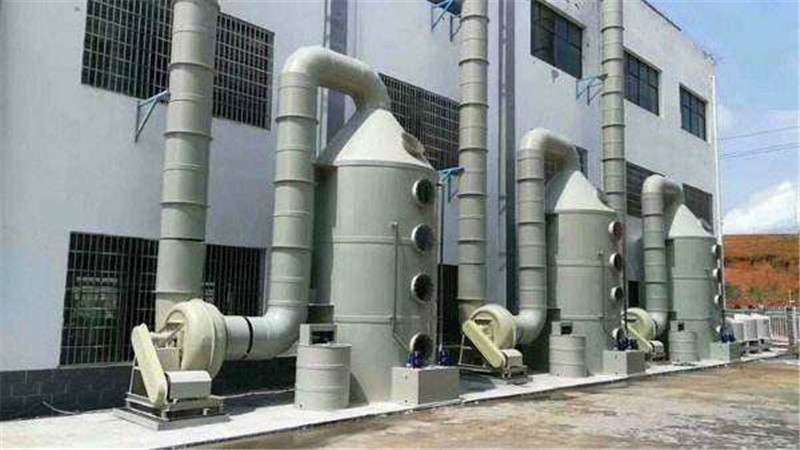

scrubbing tower

Strength


Wide application range

Taida control system can be used to control various system and holds precise control performance.


High working efficiency

Compared with other similar machine, Taida equipment can produce more output products.


Easy maintenance and simple operation

With reasonble structural design, Taida system holds lowwer malfunction rate and longer serivce life.


Better working performance and rational design

Taida equipment holds good working performance and rational design, which makes it achieve higher output capacity.


Product Line Structure


Send E-mail
Respond To Your Email In 24 Hours
WeChat/WhatsApp
Efficient Labor Service
Online Quote
7*24h Customer Online Service

Product Feature and Application

Parameter

Model HMC-32 HMC-48 HMC-64 HMC-80 HMC-96 HMC-112
Processed air amount(m3·h) 1500-2100 2100-3200 2900-4300 4000-6000 5200-7000 6000-9000
Filtered area(m2) 24 36 48 60 72 84
Filtered air speed (m/min) 1.0—1.5 1.0—1.5 1.0—1.5 1.1—1.7 1.2—1.7 1.2—1.8
Number of filter bag 32 48 64 80 96 112
Inlet temperature(℃) ≤120
Equipment resistance(Pa) ≤1200
Inlet dust loading(g/m3) <200
Outlet dust loading (mg/m3) ≤50
Slag discharge pressure(MPa) 0.4~0.6
Slag discharge air consumed (m3/min) 0.10 0.14 0.20 0.24 0.29 0.34
Negative pressure(Pa) 5000
