Cyclone Dust Collector
【Density of Inlet】: ≤200g/Nm3
【Density of Outlet】:≤50mg/Nm3
【Power】:1.5-7.5KW
【Application】:Building material, metallurgy, mining, coal, nonmetal ore superfine powder processing industries.

Product Description

Taida Series cyclone Dust Collector can collect and separate the air dust and particles.  It can not only coordinate with crusher and vibrating screen to purify general dust gas, but also deal with high concentration dust gas.  It is applied to recover the final products getting from the ball mill, dryer, classifier.  It is widely used for dust gas purification processing system in building material, metallurgy, mining, coal, nonmetal ore superfine powder processing industries.  DMC Series Dust Collector is the ideal equipment for environmental protection.

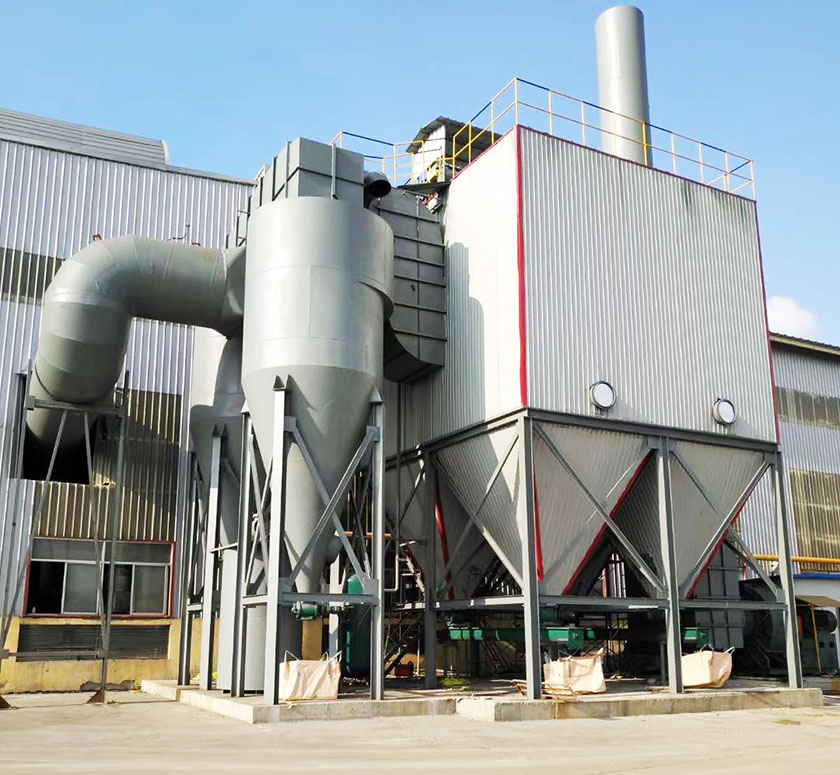

cyclone dust collector

Strength


Wide application range

Taida dust collector can be used to collect dust and particles in various production lines, like dryingl lines, calcining lines and briquetting lines.


High working efficiency

Compared with other similar machine, Taida equipment is more efficient in collecting dust.


Easy maintenance and simple operation

With reasonble structural design, Taida system holds lowwer malfunction rate and longer serivce life.


Better working performance and rational design

Taida equipment holds good working performance and rational design, which makes it achieve higher output capacity.


Product Line Structure

Send E-mail
Respond To Your Email In 24 Hours
WeChat/WhatsApp
Efficient Labor Service
Online Quote
7*24h Customer Online Service

Product Feature and Application

Parameter

Model Filtering wind
speed(m/min)
Input air (m3/h) Qty of filter
 bag(pc)
Air consum-ption
(m³/h)
Density of
inlet(g/Nm3)
Density of
outlet(mg/Nm3)
Power(kW)
TD32 1.04-1.67 1500-2400 32 0.032 ≤200 ≤50 1.5
TD48 1.15-1.62 2500-3500 48 0.048 ≤200 ≤50 2.2
TD64 1.21-1.74 3500-5000 64 0.064 ≤200 ≤50 3
TD80 1.25-1.67 4500-6000 80 0.08 ≤200 ≤50 5.5
TD96 1.27-1.62 5500-7000 96 0.096 ≤200 ≤50 5.5
TD112 1.28-1.68 6500-8500 112 0.11 ≤200 ≤50 7.5
