【Type】: Rotary kiln
【Capacity】: 180-10000t/day
【Pedestal Qty.】:3-4group
【Specification】:φ2500mm-φ6000mm, Larger or smaller sizes can be customized
Siderite is a common type of iron ore. It is a carbonate iron ore with a theoretical iron content of more than 45%. Theoratically, iron of siderite is of low grade. It is often combined with calcium, magnesium, and manganese in symbiosis. It is difficult for common ore dressing method to make iron concentrate grade higher than 45%. In addition, burn rate of siderate is large, which will reduce the utilization factor of blast furnace and increase energy consumption. However, after calcining, grade of refined iron ore can be greatly improved. Therefore, siderite rotary kiln must be calcined first before beneficiation.

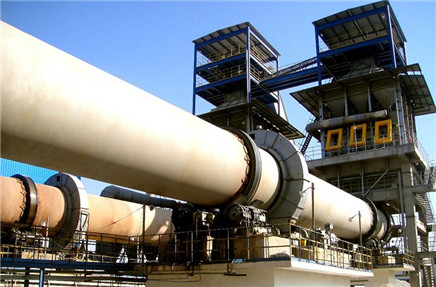

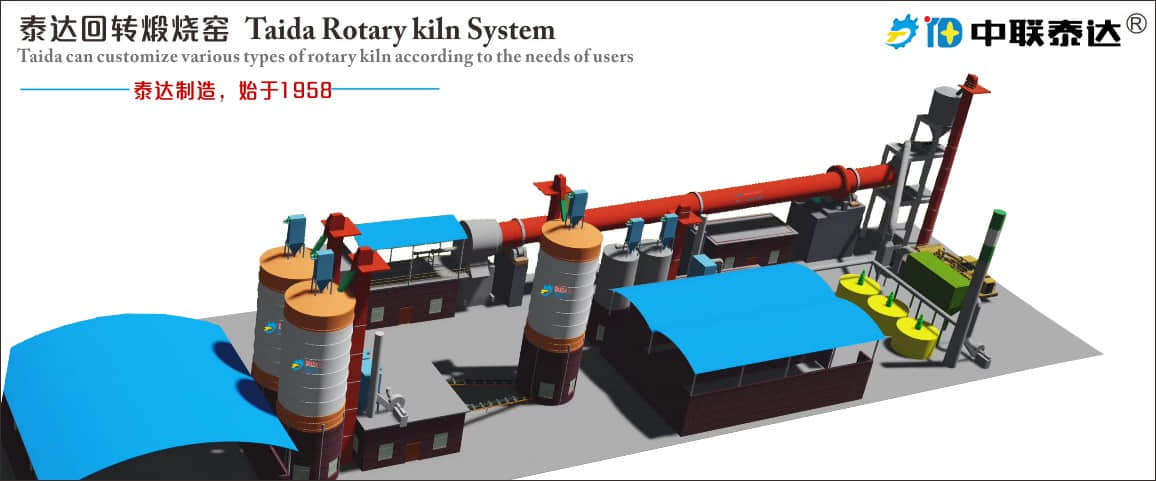

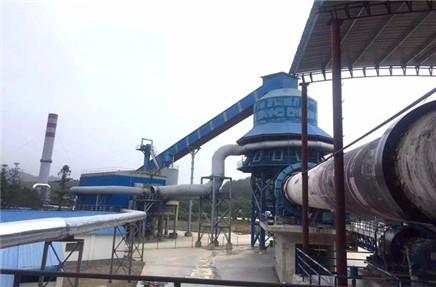

Siderite rotary kiln supplied by Taeda® can carry out high-quality calcination work to achieve resource utilization goal. At the same time, siderite rotary kiln is also widely used in metallurgy, chemical industry, construction and other relevant industries.
| Specifications (m) | Dimensions | Motor power (kw) | Total weight (t) | ||||
| Diameter (m) | Length (m) | Inclination (%) | Output (t/h) | Rotary speed (r/min) | |||
| Φ2.5×40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | 149.61 |
| Φ2.5×50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 187.37 |
| Φ2.5×54 | 2.5 | 54 | 3.5 | 204 | 0.48-1.45 | 55 | 196.29 |
| Φ2.7×42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | 198.5 |
| Φ2.8×44 | 2.8 | 44 | 3.5 | 400 | 0.437-2.18 | 55 | 201.58 |
| Φ3.0×45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 | 210.94 |
| Φ3.0×48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 | 237 |
| Φ3.0×60 | 3 | 60 | 3.5 | 300 | 0.3-2 | 100 | 310 |
| Φ3.2×50 | 3.2 | 50 | 4 | 1000 | 0.6-3 | 125 | 278 |
| Φ3.3×52 | 3.3 | 52 | 3.5 | 1300 | 0.266-2.66 | 125 | 283 |
| Φ3.5×54 | 3.5 | 54 | 3.5 | 1500 | 0.55-3.4 | 220 | 363 |
| Φ3.6×70 | 3.6 | 70 | 3.5 | 1800 | 0.25-1.25 | 125 | 419 |
| Φ4.0×56 | 4 | 56 | 4 | 2300 | 0.41-4.07 | 315 | 456 |
| Φ4.0×60 | 4 | 60 | 3.5 | 2500 | 0.396-3.96 | 315 | 510 |
| Φ4.2×60 | 4.2 | 60 | 4 | 2750 | 0.4-3.98 | 375 | 633 |
| Φ4.3×60 | 4.3 | 60 | 3.5 | 3200 | 0.396-3.96 | 375 | 583 |
| Φ4.5×66 | 4.5 | 66 | 3.5 | 4000 | 0.41-4.1 | 560 | 710.4 |
| Φ4.7×74 | 4.7 | 74 | 4 | 4500 | 0.35-4 | 630 | 849 |
| Φ4.8×74 | 4.8 | 74 | 4 | 5000 | 0.396-3.96 | 630 | 899 |
| Φ5.0×74 | 5 | 74 | 4 | 6000 | 0.35-4 | 710 | 944 |
| Φ5.6×87 | 5.6 | 87 | 4 | 8000 | Max4.23 | 800 | 1265 |
| Φ6.0×95 | 6 | 95 | 4 | 10000 | Max5 | 950×2 | 1659 |
Strong Processing Ability
Various automatic processing devices makes Taeda has the ability to process 17.5-m length and 100-mm thickness equpment.
Strict Quality Inspection
Taeda carries out strict quality inspection regulations which makes Taeda equipment with high output capacity and high effciency.
Standard Production
Advanced and modern production center makes equipment production process more efficient and Taeda Manufacture reliable.
Superior Process Texture
Taeda adopts superior equipment production materials which guarantees long service life and stable working performance.
