Forage Dryer

【Capacity】: 1-8t/h
【Power】: 32-165Kw
【Delivery period】:  15-30 days
【Applicable material】:  spent grain, vinasse, distiller, bean pulp, bean residues, paper pu.pulps and other high-moiture sticky materials., forage material, animal feed and etc.

Product Description

  The Forage dryer production line is suitable for large-scale pasture production enterprises to carry out fast and continuous drying operations on fresh forage during the concentrated harvest season of pasture. The Dongding machinery developed the Forage dryer production line adopts the latest international high-temperature rapid drying technology, which enables the forage grass to quickly complete the heat and mass transfer drying process in the dryer, and better maintain the nutrient content of the fresh pasture, after drying Herbs are fragrant, dark green in colour and suitable for storage and transportation. The pasture dryer can use coal (heavy oil, gas) to generate strong dry hot air through the high temperature furnace, so that the material is directly in contact with the hot air in the drying cylinder, spirally forward to achieve the purpose of drying, the system uses Temperature control speed control system, raw materials cut into one-stop production of finished products into the warehouse.

Working Principle and structure of the forage drying machine:

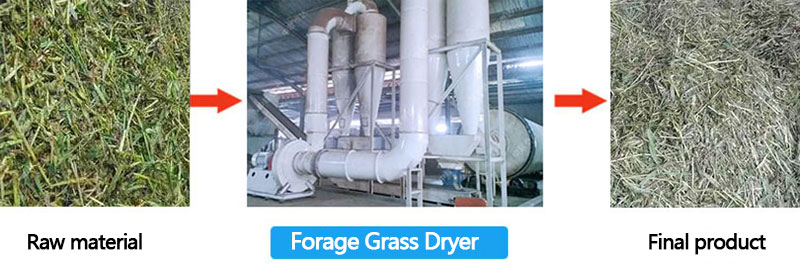

forage dryer

  Materials are sent to hopper of fodder drying machine by belt conveyor or bucket elevator. The barrel is installed with slope to horizontal line. Materials enter the barrel from the higher side, and hot air enters the barrel from the lower side, materials and hot air mix together. Materials go to the lower side by gravity when the barrel rotates. Lifters on the inner side of barrel lift materials up and down to make materials and hot air mix completely.

Strength


Good abrasive resistance and long service span

When the temperature is too high, there will no oxide skin. This machine is characterized by good abrasive resistance. Therefore, it has a long service span.


High output capacity

Whole system holds very high output capacity, small flow resistance; Whole system can be operated easily and conveniently.


Flexible equipment configuration

Whole system can match with various heat source and auxiliary equipment, which makes whole drying system can meet different drying demands of different customers.


Low energy consumption

After times' upgrading and improvement, energy consumption of Taida dryer is much less than common drying machine.

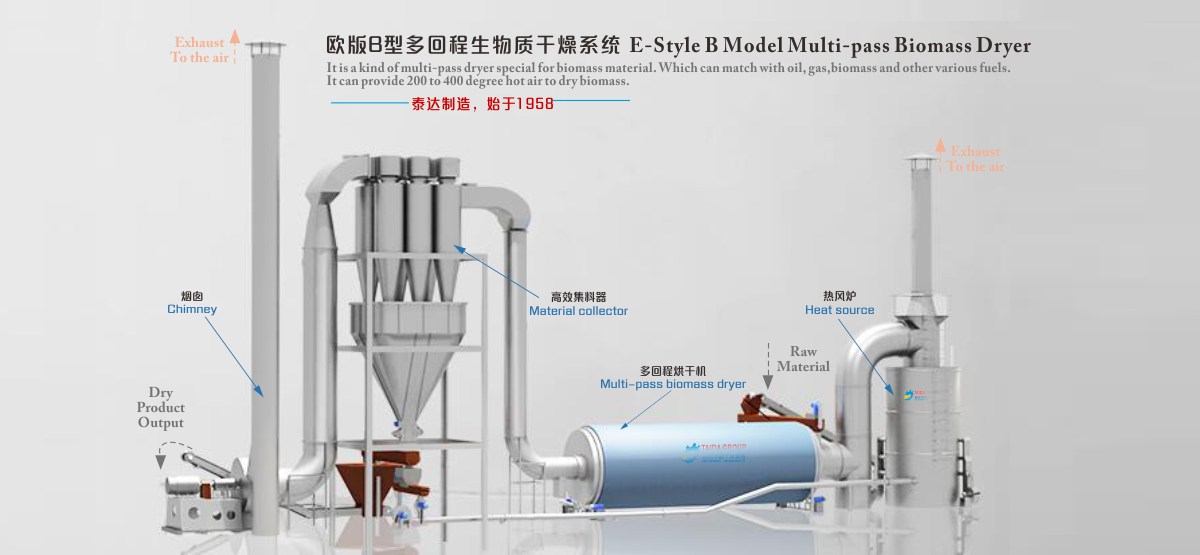

Product Line Structure

forage dryer

Send E-mail
Respond To Your Email In 24 Hours
WeChat/WhatsApp
Efficient Labor Service
Online Quote
7*24h Customer Online Service

Product Feature and Application

Parameter

Item TDOSB-S TDOSB-S TDOSB-S TDOSB-S TDOSB-S TDOSB-S TDOSB-S TDOSB-S TDOSB-S TDOSB-S
Diameter (mm) 3500 3500 4000 4000 4500 4500 5000 5000 5600 5600
Length (mm) 22000 24000 24000 26000 24000 26000 26000 30000 28000 30000
Capacity (t/h) 13.5 15.8 19 22.5 25.8 28.125 34 39 45 50.6
Drying Type
Single drum dryer
Note Proper models can be customized according to your demands. Please feel free to contact with us any time!

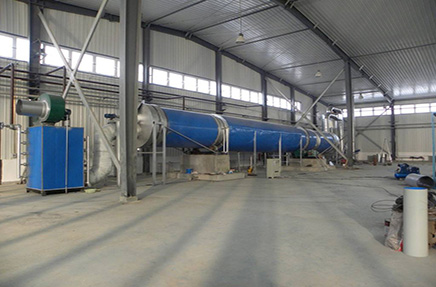

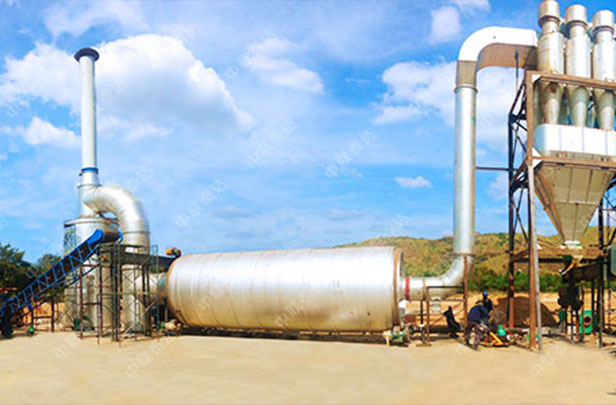

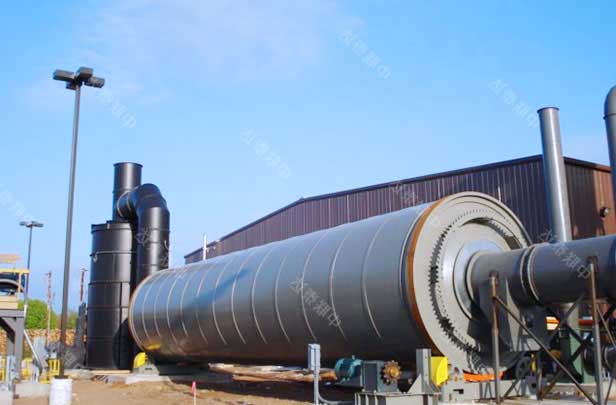

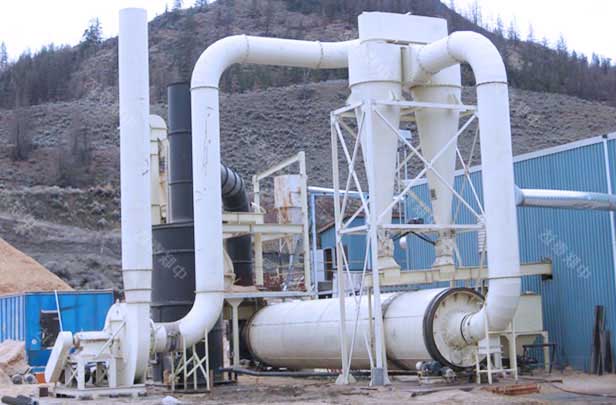

Successful Case
