【Capacity】: 1-10t/h
【Screen layer】:1-4 layer
【Power】:2.2-7.5KW
【Application】: Widely applied for food, chemical, mineral ore and plastic industries.

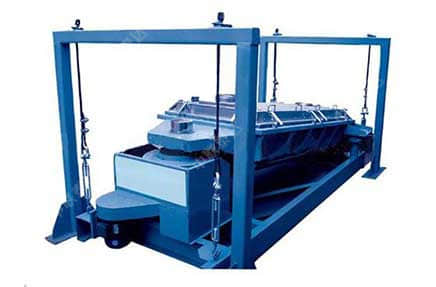

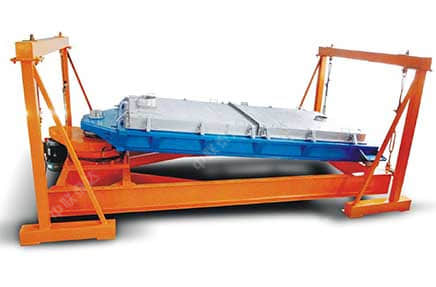

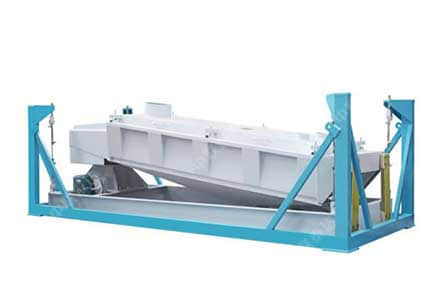

PMS series Gyratory Screener is one kind precision screening equipment, it could screen particle shape material, powder material and irregularly shape material. Compare with other heavy duty screener, its screening precision is higher, compare with other precision screening equipment, its capacity is larger. So our PMS serial Gyratory screener could meet the specific on large capacity and high screening precision.
Taida disc granulator can be used to granulate chicken manure, cow dung, sheep manure and other kinds of organic fertilizer materials.
Compared with other similar disc granulator, Taida disc granulator can produce more output products.
With reasonble structural design, Taida disc granulator holds lowwer malfunction rate and longer serivce life.
Taida disc granulator holds good working performance and rational design, which makes it achieve higher output capacity.
| Layer | Model |
Screen specification W*Lmm |
Screen box mm |
Motor | |
|
Power Kw |
rpm | ||||
| 1 | PMS800*1500 | 800*1500 | 63.5 | 2.2 | 960 |
| PMS1000*1400 | 1000*1400 | 63.5 | 2.2 | 960 | |
| PMS1000*2100 | 1000*2100 | 63.5 | 2.2 | 960 | |
| PMS1000*3000 | 1000*3000 | 63.5 | 2.2 | 960 | |
| PMS1500*2100 | 1500*2100 | 63.5 | 2.2 | 960 | |
| PMS1500*3000 | 1500*3000 | 76 | 3.7 | 1450 | |
| PMS1500*3600 | 1500*3600 | 89 | 5.5 | 960 | |
| PMS2000*3600 | 2000*3600 | 89 | 5.5 | 960 | |
| 2 | PMS1000*1400/2 | 1000*1400 | 63.5 | 2.2 | 960 |
| PMS1000*2100/2 | 1000*2100 | 63.5 | 2.2 | 960 | |
| PMS1000*3000/2 | 1000*3000 | 76 | 3.7 | 1450 | |
| PMS1500*2100/2 | 1500*2100 | 76 | 3.7 | 1450 | |
| PMS1500*3000/2 | 1500*3000 | 89 | 5.5 | 960 | |
| PMS1500*3600/2 | 1500*3600 | 89 | 5.5 | 960 | |
| PMS2000*4600/2 | 2000*4600 | 89 | 7.5 | 960 | |
| 3 | PMS1000*2100/3 | 1000*2100 | 76 | 3.7 | 1450 |
| PMS1000*3000/3 | 1000*3000 | 76 | 3.7 | 1450 | |
| PMS1500*3000/3 | 1500*3000 | 89 | 5.5 | 960 | |
| 4 | PMS800*1500/4 | 800*1500 | 76 | 3.7 | 1450 |
| PMS1000*2100/4 | 1000*2100 | 89 | 5.5 | 960 | |
| PMS1000*3000/4 | 1000*3000 | 89 | 5.5 | 960 | |
| PMS1500*3000/4 | 1500*3000 | 89 | 7.5 | 960 | |
| 5 | PMS1000*2100/5 | 1000*2100 | 89 | 5.5 | 960 |
