【Capacity】: 8-600t/h
【Screen layer】:2-4 layer
【Power】:5.5-45KW
【Application】: coal separator, mineral processing, building materials, electricity and chemical industry, etc.

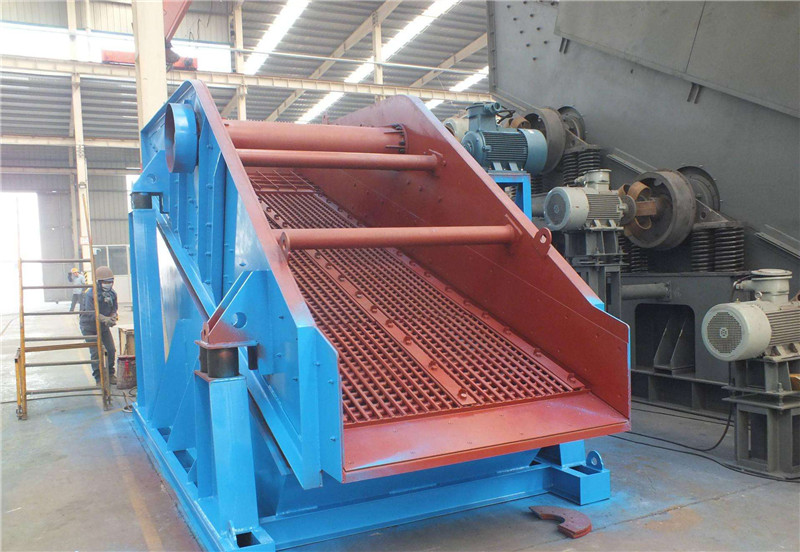

Circular vibrating screen is a kind of new screening equipment, the vibrating track is a circle, and it is designed for especially screening stone stock of quarry, and also for classifying products of such departments as coal separator, mineral processing, building materials, electricity and chemical industry, etc. The output and energy consumption of our circular vibrating screen reach the national standard. It is advanced at home and abroad, and is well accepted by customers. The screening line of materials is long, the screening specifications are diverse and different from each other obviously, the screening efficiency is high, and it is hardly jammed. The screen has the advantages of reasonable structure, strong magnetic exciting capacity, low vibrating noise, durable, convenient maintenance, and safety and so on. (Note: According to different requirements of customers, our company applies vibrating screen with different specifications and vibrating modes.)
Taeda holds 20-year production history and 60-year skllled production team. 95% spare parts are Self-produced and external processing rate for core commponents lower than 3%.
Taeda holds a more than 100-people professional R&D team which can customize one-on-one technical support ba
Various automatic processing devices equipped in production ba
Taeda complete service system covers demand communication, contract signing, equipment delivery, on-site installation guidance and commissioning, which saves customers worries.
| Model |
Sieve la |
Sieve area (㎡) | Mesh size (mm) | Max feeding size (mm) | Capacity (m³/h) | Vibrating Power (r/min) | Duble amplitude (mm) | Motor power (kw) | Sieve obliquity (o) | Sieve spec. (mm) | Total weight (kg) | Dimensions (L*W*H)(mm) |
| 2YK1225 | 2 | 6 | 4-50 | 400 | 8-60 | 800-970 | 8 | 5.5 | 20 | 1200*2500 | 3500 | 2930*1860*870 |
| 3YK1225 | 3 | 9 | 4-50 | 400 | 10-70 | 800-970 | 8 | 5.5 | 20 | 1200*2500 | 3850 | 3070*1860*1210 |
| 2YK1230 | 2 | 7.2 | 4-50 | 400 | 12-78 | 800-970 | 8 | 7.5 | 20 | 1200*3000 | 4200 | 3430*1860*870 |
| 3YK1230 | 3 | 10.8 | 4-50 | 400 | 13-80 | 800-970 | 8 | 7.5 | 20 | 1200*3700 | 4600 | 3570*1860*1210 |
| 2YK1237 | 2 | 8.88 | 4-50 | 400 | 15-86 | 800-970 | 8 | 7.5 | 20 | 1200*3700 | 4600 | 4050*1860*870 |
| 3YK1237 | 3 | 13.22 | 4-50 | 400 | 16-90 | 800-970 | 8 | 7.5 | 20 | 1500*3500 | 5200 | 4270*1860*1210 |
| 2YK1535 | 2 | 10.5 | 5-50 | 400 | 20-125 | 800-970 | 8 | 11 | 20 | 1500*3500 | 5890 | 4120*2210*1230 |
| 3YK1535 | 3 | 15.75 | 5-50 | 400 | 21-125 | 800-970 | 8 | 11 | 20 | 1500*3500 | 6700 | 4360*2210*1610 |
| 2YK1545 | 2 | 13.5 | 5-50 | 400 | 22-150 | 800-970 | 8 | 15 | 20 | 1500*4500 | 6330 | 5120*2210*1230 |
| 3YK1545 | 3 | 20.25 | 5-50 | 400 | 22-150 | 800-970 | 8 | 15 | 20 | 1500*4500 | 6800 | 5360*2210*1610 |
| 4YK1545 | 4 | 27 | 5-50 | 400 | 22-155 | 800-970 | 8 | 18.5 | 20 | 1500*4500 | 7800 | 5930*2210*2060 |
| 2YK1548 | 2 | 14.4 | 5-50 | 400 | 22.5-162 | 800-970 | 8 | 15 | 20 | 1500*4800 | 6980 | 5420*2210*1230 |
| 3YK1548 | 3 | 21.6 | 5-50 | 400 | 22.5-162 | 800-970 | 11 | 15 | 20 | 1500*4800 | 7700 | 5660*2210*1610 |
| 4YK1548 | 4 | 28.8 | 5-50 | 400 | 22.5-162 | 800-970 | 8 | 18.5 | 20 | 1500*4800 | 8700 | 6230*2210*2060 |
| 2YK1848 | 2 | 17.28 | 5-80 | 400 | 25-206 | 750 | 8 | 15 | 20 | 1800*4800 | 9080 | 5420*2550*1420 |
| 3YK1848 | 3 | 25.92 | 5-80 | 400 | 32-276 | 750 | 8 | 18.5 | 20 | 1800*4800 | 9600 | 5660*2550*1780 |
| 4YK1854 | 4 | 34.54 | 5-80 | 400 | 32-285 | 750 | 8 | 22 | 20 | 1800*4800 | 11100 | 6290*2550*2160 |
| 2YK1854 | 2 | 19.44 | 5-80 | 400 | 32-312 | 800-970 | 8 | 18.5 | 20 | 1800*5400 | 10150 | 5960*2500*1420 |
| 3YK1854 | 3 | 29.16 | 5-80 | 400 | 32-312 | 800-970 | 8 | 22 | 20 | 1800*5400 | 10840 | 6260*2550*1780 |
| 4YK1854 | 4 | 38.88 | 5-80 | 400 | 32-336 | 800-970 | 8 | 30 | 20 | 1800*5400 | 12840 | 6830*2550*2160 |
| 2YK2160 | 2 | 25.2 | 5-100 | 400 | 50-475 | 970 | 8 | 30 | 20 | 2100*2600 | 11780 | 6720*2840*1530 |
| 3YK2160 | 3 | 37.8 | 5-100 | 400 | 50-475 | 970 | 8 | 30 | 20 | 2100*2600 | 12800 | 7030*2840*1910 |
| 4YK2160 | 4 | 50.4 | 5-100 | 400 | 50-497 | 970 | 8 | 37 | 20 | 2100*2600 | 14800 | 7300*2840*2380 |
| 2YK2460 | 2 | 28.8 | 5-100 | 400 | 65-550 | 970 | 8 | 37 | 20 | 2400*6000 | 15600 | 7020*3140*1530 |
| 3YK2460 | 3 | 43.2 | 5-100 | 400 | 70-620 | 970 | 8 | 37 | 20 | 2400*6000 | 17600 | 7300*3140*1910 |
| 4YK2460 | 4 | 57.6 | 5-100 | 400 | 80-680 | 970 | 8 | 45 | 20 | 2400*6000 | 19600 | 7600*3140*2380 |
