【Type】: Rotary kiln
【Pedestal Qty.】: 3-4group
【Capacity】:50-5200t/day
【Specification】:φ2500mm-φ4800mm, Larger or smaller sizes can be customized

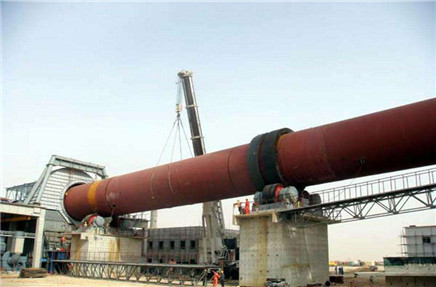

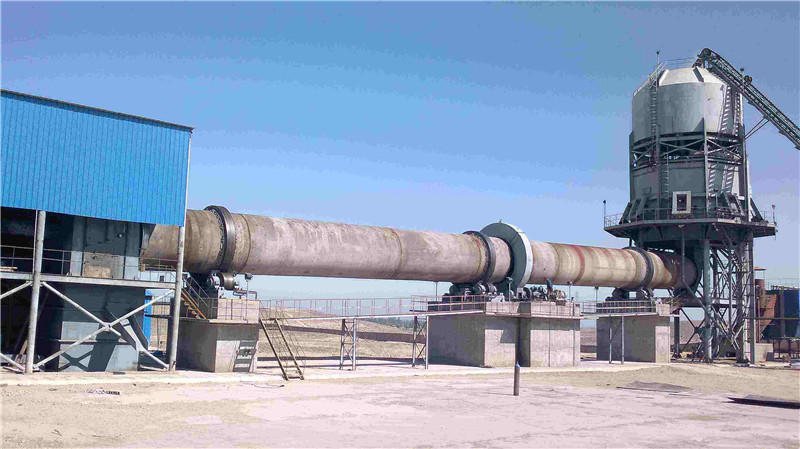

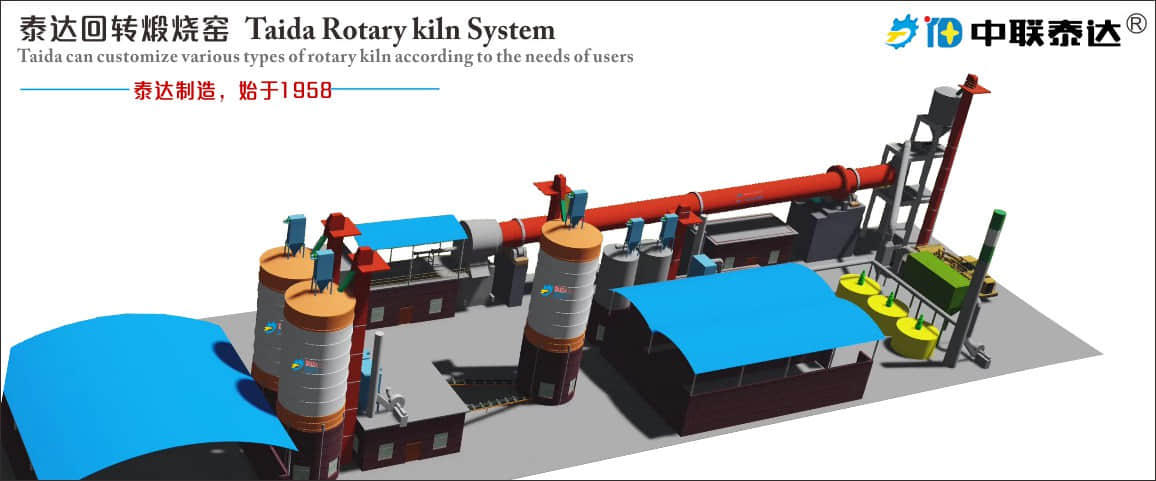

Cement kiln is used to calcine clinker from limestone and clay and produce cement. Cement production process will experience "two-grinding and one-calcining" procedure (raw material grinding system, clinkder calcining system and cement grinding mill system). Among them, clinker calcining system is used to calcine cement raw material to cement clinker. It is a very important stage for cement production. We can provide whole set equipment for cement production line with 50 to 5200tpd capacity.
|
Specification |
φ3.2×48 | φ3.2×50 | φ3.3×52 | φ4×60 | φ4.2×60 | φ4.3×62 | φ4.3×64 | φ4.5×66 | φ4.7×72 | φ4.8×70 | φ4.8×72 | φ4.8×74 | |
| Production capacity(t/d) | 1000 | 1100 | 1200 | 2500 | 2800 | 3000 | 3200 | 4000 | 4500 | 4800 | 5000 | 5200 | |
|
Kiln slope(%) |
3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 4 | 3.5 | 4 | 3.5 | 4 | 4 | |
|
Supporting number |
3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Catch wheel form | Mechanical | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
|
Kiln rotation speed |
Main driving (rpm) |
0.375-3.75 | 0.398-3.975 | 0.391-3.91 | 0.396-3.96 | 0.4165-4.165 | 0.398-3.98 | 0.449-4.49 | 0.41-4.1 | 0.42-4.2 | 0.4-4.0 | 0.403-4.03 | 0.412-4.12 |
|
Slow drive (rpm) |
16.6 | 11.585 | 8.82 | 8.56 | 10.35 | 9.9 | 8.86 | 11.65 | 12.6 | 11.45 | 11.47 | 8.52 | |
| Main drive motor(kW) | 160 | 190 | 190 | 315 | 420 | 420 | 450 | 560 | 560 | 630 | 630 | 630 | |
|
Auxiliary drive motor(kW) |
22 | 22 | 22 | 30 | 37 | 37 | 37 | 55 | 75 | 75 | 75 | 75 | |
| Total weight(t) | 252 | 263 | 280.8 | 487.5 | 576.1 | 582.5 | 591 | 710.4 | 825 | 845.3 | 850 | 854 | |
Strong Processing Ability
Various automatic processing devices makes Taeda has the ability to process 17.5-m length and 100-mm thickness equpment.
Strict Quality Inspection
Taeda carries out strict quality inspection regulations which makes Taeda equipment with high output capacity and high effciency.
Standard Production
Advanced and modern production center makes equipment production process more efficient and Taeda Manufacture reliable.
Superior Process Texture
Taeda adopts superior equipment production materials which guarantees long service life and stable working performance.
