Titanium Dioxide Calcining Kiln

【Type】: Rotary kiln
【Pedestal Qty.】: 3-4group
【Capacity】:30-100t/day
【Specification】:φ2400mm-φ3600mm, Larger or smaller sizes can be customized

Product Description

Taeda Titanium dioxide rotary kiln is a kind of professional kiln furnace developed based according to domestic sulfuric acid titanium dioxide production process. It holds reasonable length-diameter ratio.

After high temperature heating of metatitanic acid in rotary kiln, process like drying, crystal form conversion and particle growth can be completed. It is suitable for calcination of anatase type pigment titanium dioxide and rutile type titanium dioxide. Taeda  titanium dioxide is widely applied for various scale titanium dioxide calcination production such as the calcination of anatase type pigment titanium dioxide and rutile type titanium dioxide in sulfuric-acid method titanium dioxide preparation process.

Salted metatitanic acid slurry or particles are added from tail of the kiln. Due to inclination and slow rotation of  rotary kiln, materials will do circular movement and roll continuously. Meanwhile, materials will also move toward kiln head. Fuel is fed and burned from the kiln head.  During moving forward to kiln head,  materials exchanges heat with hot air to complete the process of drying, desulfurization, crystal form conversion and particle growth.  Final titanium dioxide products will be discharged out from kiln head.

Parameter

Specification Basic parameter Capacity(t/d) Gearbox Motor Catch wheel form Riding wheel bearing Weight
rpm(r/min) Slope(%) Power(KW) Rpm(r/min)
Ф2.4x38 0.2-0.6 2.2 30 ZS125 30 1470 Mechanical Rolling 150
Ф2.8x53 0.1-0.3 4 50 ZS145 22 1470 Mechanical Rolling 271
Ф3.2x55 0.1-0.3 4 67 ZS165 55 1470 Mechanical Rolling 275.4
3.6×60 0.1-0.3 4 100 ZS315 125 1470 Hydraulic Rolling 360

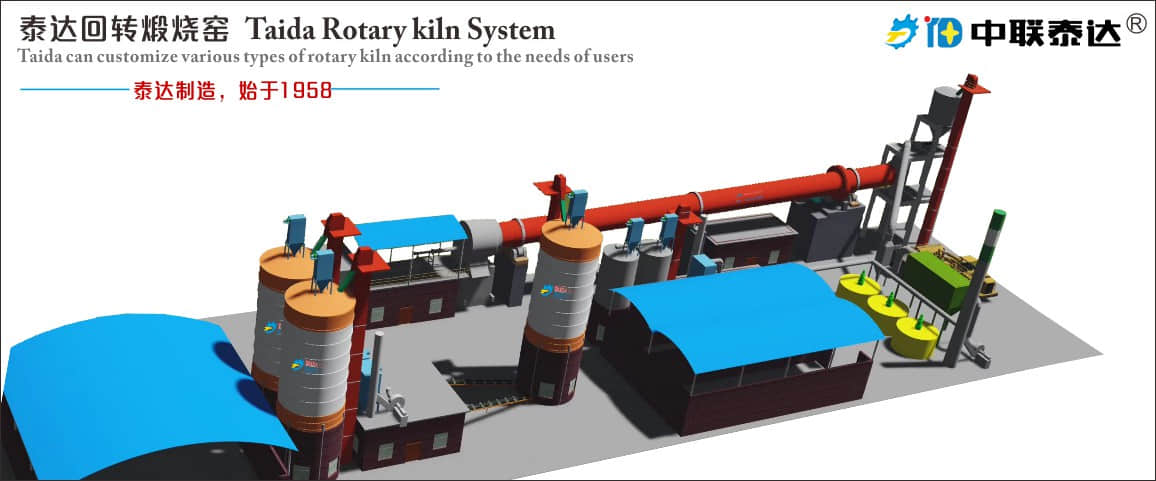

Product Line Structure

rotary caclcining kiln
What Makes Taeda Different

Strong Processing Ability

Various automatic processing devices makes Taeda has the ability to process 17.5-m length and 100-mm thickness equpment.

Strict Quality Inspection

Taeda carries out strict quality inspection regulations which makes Taeda equipment with high output capacity and high effciency.



Standard Production

Advanced and modern production center makes equipment production process more efficient and Taeda Manufacture reliable.

Superior Process Texture

Taeda adopts superior equipment production materials which guarantees long service life and stable working performance.
