Soil Ceramic Rotary Kiln

Raw materials】:Soil ceramic, alcium aluminate,dolomite, kaolin, cement, limestone, active carbon and coke and various chemical waste solids;
Motor powerDelivery period】:25-30 days
Capacity】:80-1000t/d
Application range】:Widely used for roasting process in chemical, mining, construction and metallurgy industry;



Product Description

  Soil ceramic rotary kiln is widely applications, mainly applicable to ceramic sand, yellow mud, fly ash., etc. Ceramic kiln operating temperature can generally reach 950-1050 degrees Celsius.

rotary kiln

Strength


Less occupation area and higher calcining efficiency

New design makes whole system occupy less area; less thermal loss; high working efficiency.


Flexible working temperature and equipment configuration

Reasonable design makes working temperature can be adjusted in a certain range and equipment configuration can be adjusted according to customer's real demands.


Great handling capacity

There is a whole set of equipment which holds 10 to 200t/h output capacity. We can also customize rotary calcining process according to customer’s demands.


Friendly to environment

Reasonable design can avoid the leakage of emission; whole process works under closed condition and almoist cause no pollution to environment.

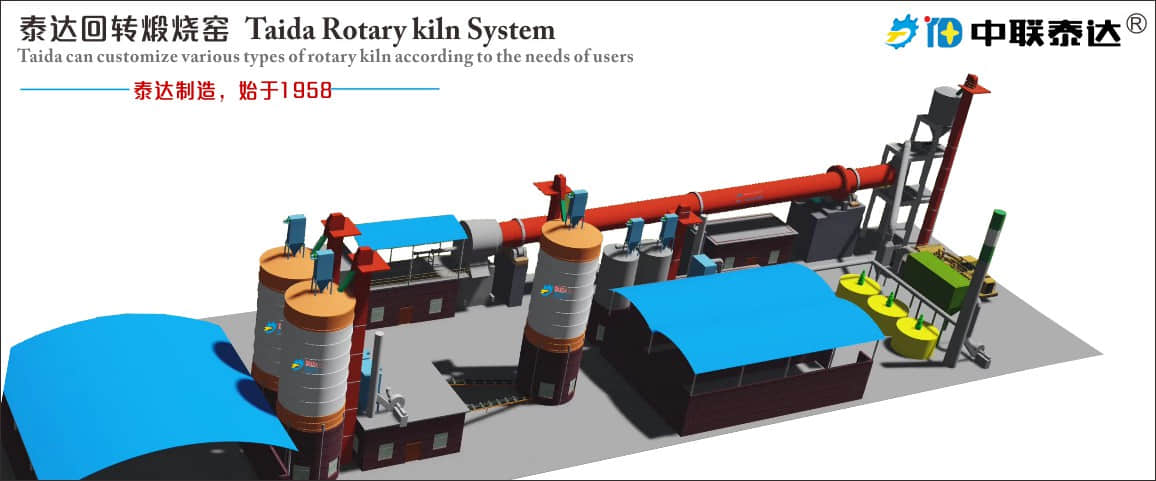

Product Line Structure

rotary kiln
Send E-mail
Respond To Your Email In 24 Hours
WeChat/WhatsApp
Efficient Labor Service
Online Quote
7*24h Customer Online Service

Product Feature and Application

Parameter

Specifications (m) Dimensions Motor power (kw) Total weight (t) Remarks
Diameter (m) Length (m) Inclination (%) Output (t/h) Rotary speed (r/min)
Φ2.5×40 2.5 40 3.5 180 0.44-2.44 55 149.61 With vertical preheater
Φ2.5×50 2.5 50 3 200 0.62-1.86 55 187.37 ----
Φ2.5×54 2.5 54 3.5 204 0.48-1.45 55 196.29 ----
Φ2.7×42 2.7 42 3.5 320 0.10-1.52 55 198.5 ----
Φ2.8×44 2.8 44 3.5 400 0.437-2.18 55 201.58 Pre-calcining kiln
Φ3.0×45 3 45 3.5 500 0.5-2.47 75 210.94 ----
Φ3.0×48 3 48 3.5 700 0.6-3.48 100 237 Pre-calcining kiln
Φ3.0×60 3 60 3.5 300 0.3-2 100 310 Bauxite calcining kiln
Φ3.2×50 3.2 50 4 1000 0.6-3 125 278 Pre-calcining kiln
Φ3.3×52 3.3 52 3.5 1300 0.266-2.66 125 283 Preheat decomposition kiln
Φ3.5×54 3.5 54 3.5 1500 0.55-3.4 220 363 Preheat decomposition kiln
Φ3.6×70 3.6 70 3.5 1800 0.25-1.25 125 419 Residual heat electricity generation kiln
Φ4.0×56 4 56 4 2300 0.41-4.07 315 456 Preheat decomposition kiln
Φ4.0×60 4 60 3.5 2500 0.396-3.96 315 510 Preheat decomposition kiln
Φ4.2×60 4.2 60 4 2750 0.4-3.98 375 633 Preheat decomposition kiln
Φ4.3×60 4.3 60 3.5 3200 0.396-3.96 375 583 Preheat decomposition kiln
Φ4.5×66 4.5 66 3.5 4000 0.41-4.1 560 710.4 Preheat decomposition kiln
Φ4.7×74 4.7 74 4 4500 0.35-4 630 849 Preheat decomposition kiln
Φ4.8×74 4.8 74 4 5000 0.396-3.96 630 899 Preheat decomposition kiln
Φ5.0×74 5 74 4 6000 0.35-4 710 944 Preheat decomposition kiln
Φ5.6×87 5.6 87 4 8000 Max4.23 800 1265 Preheat decomposition kiln
Φ6.0×95 6 95 4 10000 Max5 950×2 1659 Preheat decomposition kiln

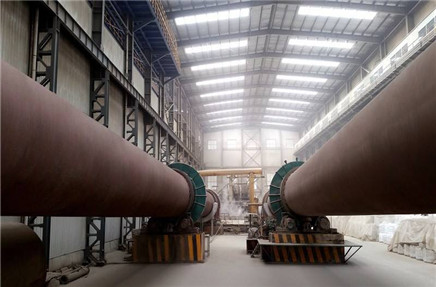

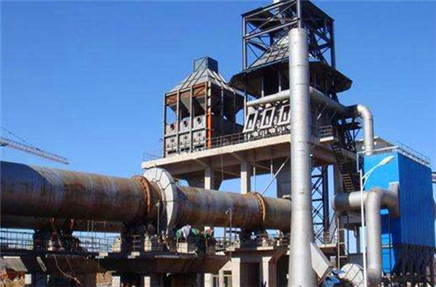

Successful Case
