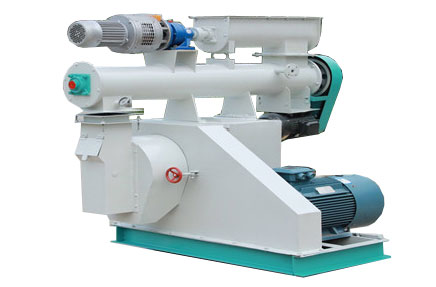

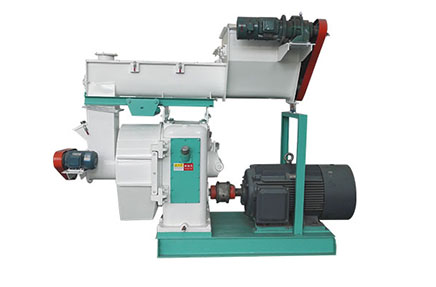

Ring Die Pellet Mills

【Application】: Corn Straw,sawdust, rice husk,wheat straw,peanut shell ,sawdust, wood powder, bamboo powder and other material.

【Capacity】:1-3t/h

【Moisture content】:10-15%Corn Straw,sawdust, rice husk,wheat straw,peanut shell ,sawdust, wood powder, bamboo powder and other material.

【Power】:11-180Kw

Product Description

Ring die pellet mills are widely used in the granulation of wood, straw, and other biomass sources. Driven by heavy- duty gearbox construction, it can work continuously in even most adverse condition. The imported key elements are of high performance with long life and low maintenance cost. The key parts of ring die pellet mill are made of alloyed steel that is very strong and malleable. Ring die pellet mills die is made of stainless steel. Our ring die pellet mills capacity ranges are from 200kgs to 3T per hour.
Introduction:
Ring die pellet mills are widely used in the granulation of wood, straw, and other biomass sources. Driven by heavy- duty gearbox construction, it can work continuously in even most adverse condition. The imported key elements are of high performance with long life and low maintenance cost. The key parts of ring die pellet mill are made of alloyed steel that is very strong and malleable. Ring die pellet mills die is made of stainless steel. Our ring die pellet mills capacity ranges are from 200kgs to 3T per hour.

Features of Ring die pellet mills :
1. Positive direct gear drive provides a 98% energy transfer - less energy wasted.
2. Segmented die clamps eliminate alignment problems and enable quicker die changes.
3. Our ring die pellet mills me
tal-to-metal seals between components keep dust and steam inside the pelleting chamber.
4. Stand-alone oil lubrication system is more effective in maintaining lubrication and keeping the bearings from wearing .
5. Stainless steel ring die resists corrosion and lasts longer.
6. Multi-positioning feeder enables easier installation and alignment to bins.

Pellet making plant flow chart:

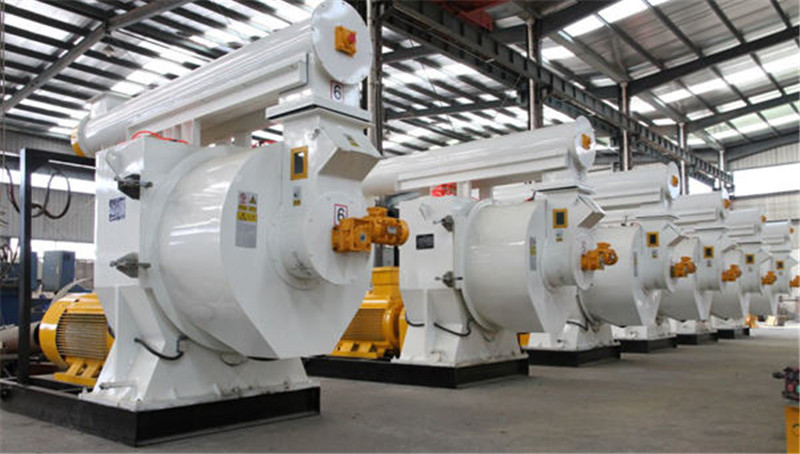

ring die pellet machine

ring die pellet machine

ring die pellet machine

Strength


Wide application range

Taida pellet machine can be used to pellet variuos wood materials, like sawdust, corn, grain, wood chips, wood shavings and other wood wastes.


High working efficiency

Compared with other similar machine, Taida pellet machine holds higher pelleting output.


Easy maintenance and simple operation

With reasonble structural design, Taida system holds lowwer malfunction rate and longer serivce life.


Better working performance and rational design

Taida equipment holds good working performance and rational design, which makes it achieve higher output capacity.


Product Line Structure


Send E-mail
Respond To Your Email In 24 Hours
WeChat/WhatsApp
Efficient Labor Service
Online Quote
7*24h Customer Online Service

Product Feature and Application

Parameter

Model

Main Motor Power(kw)

Capacity
(t/h)

Feeding Motor Power(kw) Conditioner Mortor Power(KW) Daimeter of Die(mm) Diameter of Pellet(mm)
GC-MZLH25
7.5*2
0.2-0.3
0.75+0.55
2.2
250
4-8
GC-MZLH32
37
0.2-0.6
0.75+0.55
2.2
320
4-8
GC-MZLH35
55
0.5-0.8
0.75+0.75
2.2
350
4-8
GC-MZLH40
75
0.7-1.1
1.5+0.75
2.2
400
4-8
GC-MZLH25
110
1.0-1.5
1.5+0.75
5.5
420
4-8
GC-MZLH25
132/160
2.0-3.0
1.5+0.75
7.5
508
4-8
