Magnesium Rotary Kiln

Raw materials】: Metal magnesium, ceramic sand, dolomite, kaolin, cement, limestone, alumina, magnesium Oxide and Zinc Oxide;
Delivery period】:15-30 days
Capacity】:175-1000t/d
Application range】:Widely used for roasting process in mining, construction and metallurgy industry.

Product Description

  Magnesium rotary kiln production technology is relatively simple,  putting dolomite by a crusher to qualified material, through the rotary kiln sintering, calcined into calcined white, and then after cooling machine cooling after ball mill grinding into powder, through briquette machine into balls, after crushing ,with ferrosilicon powder and fluorite powder (including GaF2) = 95%) mixing briquetting, finally into the heat-resisting stainless steel tank, putting in reducing furnace, in 1200-1250 ℃ and under the 1.33 Pa vacuum degree of vacuum reduction for making thick magnesium, solvent refining, casting, surface treatment to obtain the finished product magnesium.

rotary kiln

Strength


Less occupation area and higher calcining efficiency

New design makes whole system occupy less area; less thermal loss; high working efficiency.


Flexible working temperature and equipment configuration

Reasonable design makes working temperature can be adjusted in a certain range and equipment configuration can be adjusted according to customer's real demands.


Great handling capacity

There is a whole set of equipment which holds 10 to 200t/h output capacity. We can also customize rotary calcining process according to customer’s demands.


Friendly to environment

Reasonable design can avoid the leakage of emission; whole process works under closed condition and almoist cause no pollution to environment.

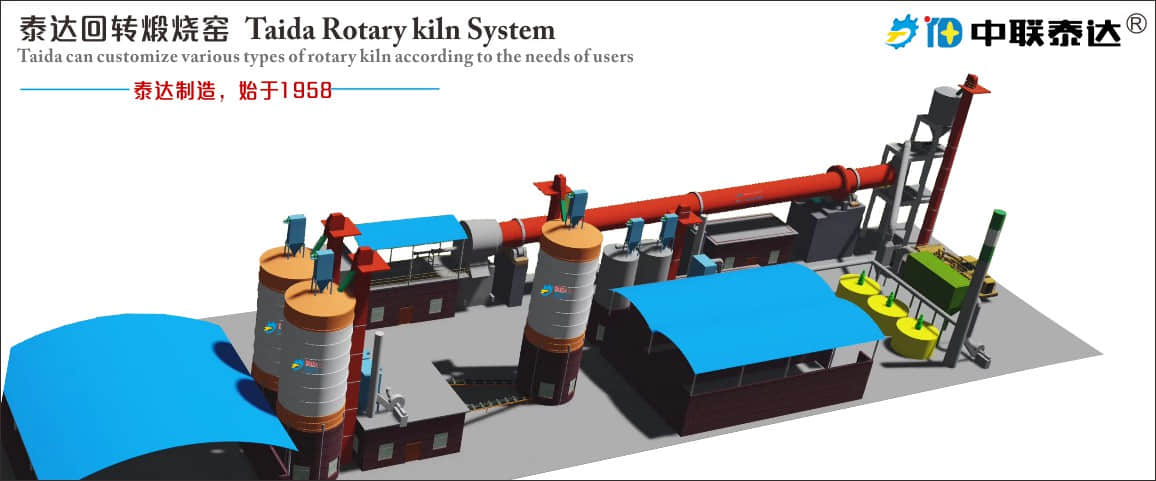

Product Line Structure

rotary kiln

Send E-mail
Respond To Your Email In 24 Hours
WeChat/WhatsApp
Efficient Labor Service
Online Quote
7*24h Customer Online Service

Product Feature and Application

Parameter

Specifications (m) Dimensions Motor power (kw) Total weight (t) Remarks
Diameter (m) Length (m) Inclination (%) Output (t/h) Rotary speed (r/min)
Φ2.5×40 2.5 40 3.5 180 0.44-2.44 55 149.61 With vertical preheater
Φ2.5×50 2.5 50 3 200 0.62-1.86 55 187.37 ----
Φ2.5×54 2.5 54 3.5 204 0.48-1.45 55 196.29 ----
Φ2.7×42 2.7 42 3.5 320 0.10-1.52 55 198.5 ----
Φ2.8×44 2.8 44 3.5 400 0.437-2.18 55 201.58 Pre-calcining kiln
Φ3.0×45 3 45 3.5 500 0.5-2.47 75 210.94 ----
Φ3.0×48 3 48 3.5 700 0.6-3.48 100 237 Pre-calcining kiln
Φ3.0×60 3 60 3.5 300 0.3-2 100 310 Bauxite calcining kiln
Φ3.2×50 3.2 50 4 1000 0.6-3 125 278 Pre-calcining kiln
Φ3.3×52 3.3 52 3.5 1300 0.266-2.66 125 283 Preheat decomposition kiln
Φ3.5×54 3.5 54 3.5 1500 0.55-3.4 220 363 Preheat decomposition kiln
Φ3.6×70 3.6 70 3.5 1800 0.25-1.25 125 419 Residual heat electricity generation kiln
Φ4.0×56 4 56 4 2300 0.41-4.07 315 456 Preheat decomposition kiln
Φ4.0×60 4 60 3.5 2500 0.396-3.96 315 510 Preheat decomposition kiln
Φ4.2×60 4.2 60 4 2750 0.4-3.98 375 633 Preheat decomposition kiln
Φ4.3×60 4.3 60 3.5 3200 0.396-3.96 375 583 Preheat decomposition kiln
Φ4.5×66 4.5 66 3.5 4000 0.41-4.1 560 710.4 Preheat decomposition kiln
Φ4.7×74 4.7 74 4 4500 0.35-4 630 849 Preheat decomposition kiln
Φ4.8×74 4.8 74 4 5000 0.396-3.96 630 899 Preheat decomposition kiln
Φ5.0×74 5 74 4 6000 0.35-4 710 944 Preheat decomposition kiln
Φ5.6×87 5.6 87 4 8000 Max4.23 800 1265 Preheat decomposition kiln
Φ6.0×95 6 95 4 10000 Max5 950×2 1659 Preheat decomposition kiln

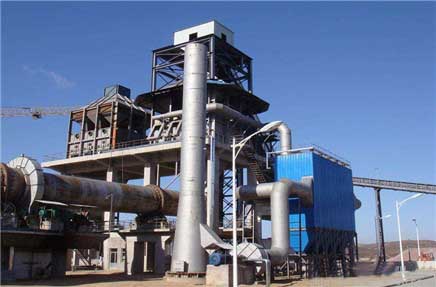

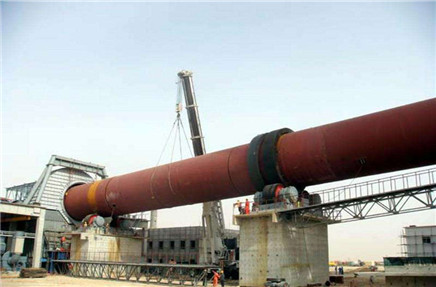

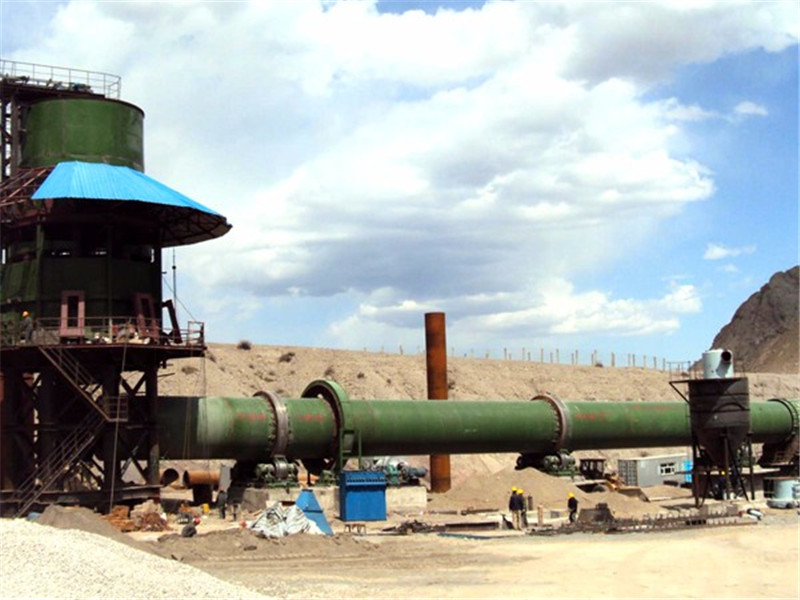

Successful Case
