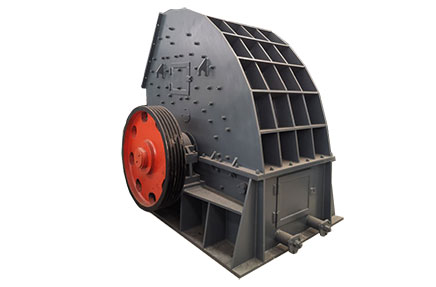

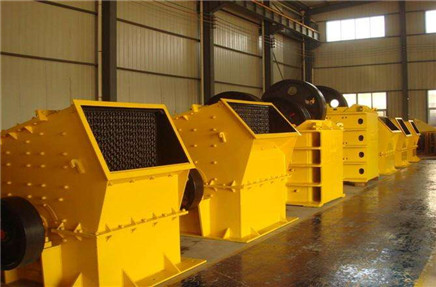

Hammer Crusher
【Supply Ability】:20 Set/Sets per Month
【Production Capacity】:5-150t/h
【Port】:Qingdao,Tianjin, Shanghai or others
【Feature】:Wear resistance, Easy maintenance, Compact structure

Product Description

  Hammer crusher machine has various types and can be classified into single rotor hammer crusher and double rotor hammer crusher machine according to the number of rotors. It also can be classified into reversible hammer crusher and irreversible hammer crusher in accordance with the direction of the rotation rotor.
  The hammer crusher machine is developed for dry and wet type crushing of brittle and medium-hard materials for the mining, cement, coal, metallurgic material, construction material, road building, and petroleum and chemical industries. The hammer crusher crushes by the collision between high-speed hammer and materials.

Hammer

  The main components of the hammer crusher are rotors. The rotors consist of the main axis, disk, pin axis and hammers. The rotors rotate in the crushing cavity driven by the engine. The material falls from the upper feed port and will be crushed with the impacting, hitting, cutting and polishing of the high-speed rotating hammers. The sieve plate is under the rotors. The material smaller than the size of the sieve pit is discharged from the sieve plate. Otherwise, the material will stay on the sieve and will be abraded and hit by the hammers constantly.

Strength


Wide application range

Taida disc granulator can be used to granulate chicken manure, cow dung, sheep manure and other kinds of organic fertilizer materials.


High working efficiency

Compared with other similar disc granulator, Taida disc granulator can produce more output products.


Easy maintenance and simple operation

With reasonble structural design, Taida disc granulator holds lowwer malfunction rate and longer serivce life.


Better working performance and rational design

Taida disc granulator holds good working performance and rational design, which makes it achieve higher output capacity.


Product Line Structure

Send E-mail
Respond To Your Email In 24 Hours
WeChat/WhatsApp
Efficient Labor Service
Online Quote
7*24h Customer Online Service

Product Feature and Application

Parameter

Model
Specification
Feeding
Size
(mm)
Discharging
Size
(mm)
Capacity
(m³/h)
Motor
power
(kw)
Total
weight(t)
Dimensions
(L×W×H)(mm)
PCΦ400×300 ≤200 ≤25 5-10 11 0.8 900×670×860
PCΦ600×400 ≤250 ≤30 10-22 22 2.26 1200×1050×1200
PCΦ800×600 ≤250 ≤35 18-40 55 4.8 1310×1180×1310
PCΦ1000×800 ≤350 ≤35 25-50 75 5.9 1600×1390×1575
PCΦ1000×1000 ≤350 ≤35 30-55 90 8 1800×1590×1775
PCΦ1200×1200 ≤350 ≤35 50-80 132-160 19.2 2060×1600×1890
PCΦ1400×1400 ≤350 ≤35 50-100 280 32 2365×1870×2220
PCΦ1600×1600 ≤350 ≤35 100-150 480 37.5 3050×2850×2800
