Bucket Elevator

【Lifting Height】: 5-7m

【Capacity】:20-185m³/h

【Processible Materials】:Bulk and particle materials like cement, stones, sand, ore, limestone, coal, gypsum, clinker, dry clay; powder materials such as raw materials, cement and coal powder etc.

【Application】:Mining, construction materials, coal mining and sand quarry.

Product Description

Bucket elevator has large capacity, high lifting height, stable and reliable operation, long service life and obvious advantages, the lifting machine is suitable for conveying powdery, granular and small block without abrasive and grinding materials, such as: coal, cement, stone, sand, clay, iron ore, because the drawing mechanism is a circular chain, thus can convey high temperature materials (material temperature does not exceed 250 ℃). And the transport can reach up to 40 meters height. TG type can reach up to 80 meters height.
Bucket Elevator is suitable for vertical conveying powder, granule and small block of disperses material, such as grain, coal, cement, stone, sand, clay, ore etc. It can lift the material with the temperature below 250 degree and the maximum hoisting height is 40 meters.
1. Small power less reactive power. Adopt inflow type feeding induction discharge large capacity intensive hoppers design. Feeding back and digging material are avoided in the working time;
2. Wide range for lifting;
3. Good sealing less environmental pollution.



bucket elevator

Strength


Wide application range

Taida conveying machine an be used to convey various materials,like sand stone, sludge, manure, fertilizer and other relevant materials from mining and metallurgy industry.


High working efficiency

Compared with other similar disc granulator, Taida machine holds higher conveying capacity.


Easy maintenance and simple operation

With reasonble structural design, Taida machine  holds lowwer malfunction rate and longer serivce life.


Better working performance and rational design

Taida machine holds good working performance and rational design, which makes it achieve higher output capacity.

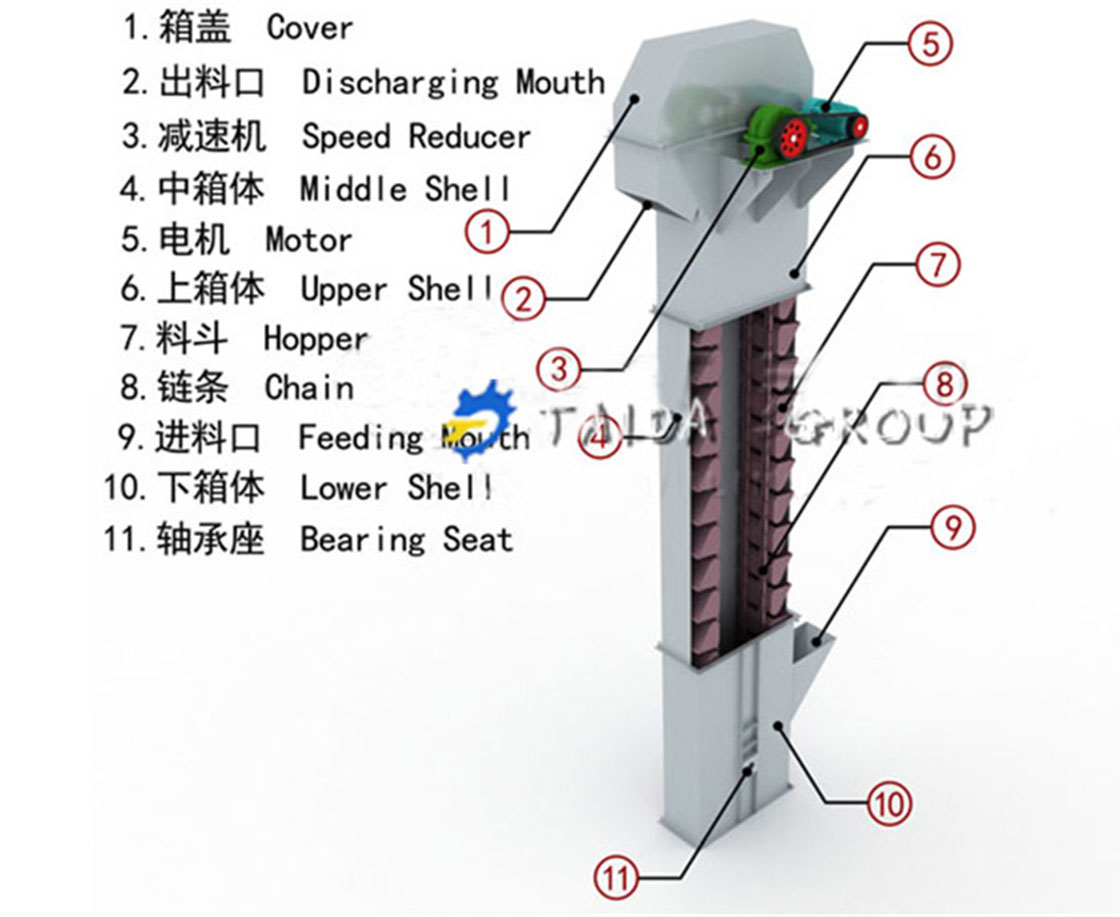

Product Line Structure

bucket elevator
Send E-mail
Respond To Your Email In 24 Hours
WeChat/WhatsApp
Efficient Labor Service
Online Quote
7*24h Customer Online Service

Product Feature and Application

Parameter

Model Capacity
(m3/h)
(Speed)
(m/s)
Feed size
(mm)
Bucket volume
(L)
Bucket distance
(mm)
Zh Sh Zh Sh
TD210 20 33 1.4 <30 2.5 5 500
TD315 35 60 1.4 <35 3.75 6 512
TD400 58 94 1.4 <40 5.9 9.5 512
TD500 75 118 1.5 <50 9.3 15 688
TD630 114 185 1.5 <60 14.6 23.6 688
