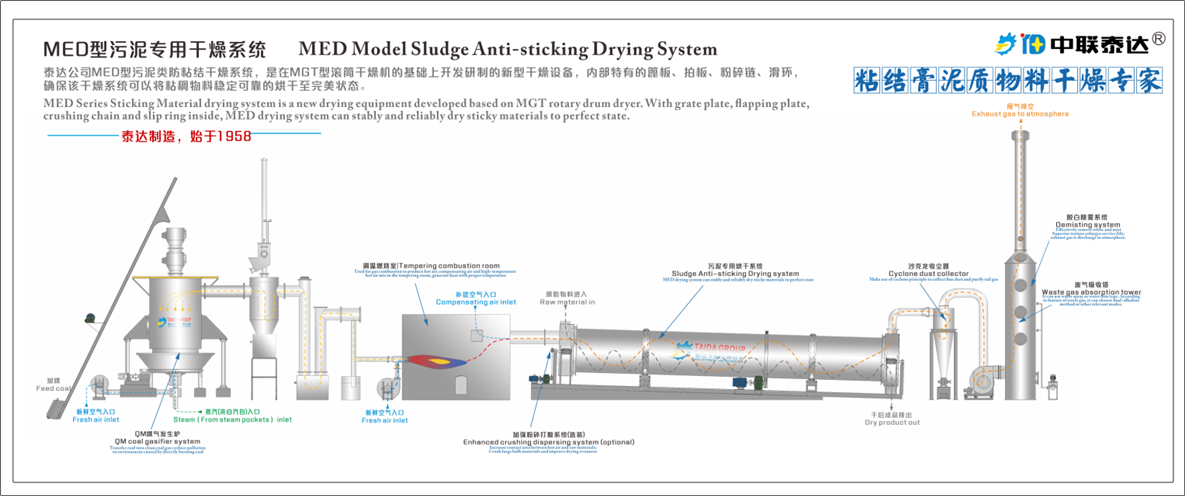

Taeda MED series sticking materials drying system is a new drying equipment developed based on MGT rotary dryer. With special grate plate, flapping plate, crushing chain and slip ring insidem, MED drying system can stably and reliably dry sticky materials to perfect state. MED sludge dryer is characterized by following features:
1.Coal slurry, crude coal, lignite, semi-coke, flotation coal and mixed coal in coal industry;
2.Furnace slag, gypsum, clay, limestone and adhesive gypsum in construction industry;
3.Metal concentrates, tailings, ore sludge and waste residues in beneficiation industry.
4.Non heat-sensitive materials in chemical industry;
5.Sludge filter cake and viscous sludge from industrial wastewater treatment and municipal sewage treatment.
More information you may be interested in:
Taeda holds 20-year production history and 60-year skllled production team. 95& spare parts are Self-produced and external processing rate for core commponents lower than 3%.
Taeda holds a more than 100-people professional R&D team which can customize one-on-one technical support ba
Various automatic processing devices equipped in production ba
Taeda complete service system covers demand communication, contract signing, equipment delivery, on-site installation guidance and commissioning, which saves customers worries.
| Model | Gradient | Rotational Speed | Max Inlet Air Temperature | Power | Capacity |
| MED600 | 3-5 | 3-8 | ≤850 | 3 |
Different Materials Different Capacity. |
| MED800 | 3-5 | 3-8 | ≤850 | 4 | |
| MED1000 | 3-5 | 3-8 | ≤850 | 5.5 | |
| MED1200 | 3-5 | 3-8 | ≤850 | 11 | |
| MED1500 | 3-5 | 3-8 | ≤850 | 15 | |
| MED1800 | 3-5 | 3-8 | ≤850 | 18.5 | |
| MED2000 | 3-5 | 3-8 | ≤850 | 22 | |
| MED2200 | 3-5 | 3-8 | ≤850 | 30 | |
| MED2400 | 3-5 | 3-5 | ≤850 | 37 | |
| MED2600 | 3-5 | 3-5 | ≤850 | 40 | |
| MED2800 | 3-5 | 3-5 | ≤850 | 55 | |
| MED3000 | 3-5 | 3-5 | ≤850 | 75 | |
| MED3200 | 3-5 | 3-5 | ≤850 | 90 | |
| MED3400 | 3-5 | 3-5 | ≤850 | 110 | |
| MED3600 | 3-5 | 3-5 | ≤850 | 150 | |
| MED4000 | 3-5 | 1.5-5 | ≤850 | 190 | |
| MED4200 | 3-5 | 1.5-5 | ≤850 | 200 | |
| MED4500 | 3-5 | 1.5-5 | ≤850 | 260 |
Strong Processing Ability
Various automatic processing devices makes Taeda has the ability to process 17.5-m length and 100-mm thickness equpment.
Strict Quality Inspection
Taeda carries out strict quality inspection regulations which makes Taeda equipment with high output capacity and high effciency.
Standard Production
Advanced and modern production center makes equipment production process more efficient and Taeda Manufacture reliable.
Superior Process Texture
Taeda adopts superior equipment production materials which guarantees long service life and stable working performance.
