Rotary dryers

Zinc oxide rotary kiln



Raw materials】: Zinc oxide
Weight (t)】:66-841

【Delivery】:15-30 days

【Application】:Used for zinc oxide ore or zinc ore industrial slag calcined production of zinc oxide.

E-mail: service@tdaxy.com

get a quote online faq
Advantages:

Product Description:
1, Grinding zinc material and coking coal less than 40 mesh, and mix zinc and coking charge proportionally 1:0.30 to 0.35 to get mixed well materials.
2, made the mixed well materials to 8-15 mm diameter particle mixture, and finally feed the mixture into rotary kiln for smelting.
3, when the zinc content is 15% to 25% zinc oxide or zinc ore industrial slag calcined production of zinc oxide, can greatly savings coke or coal.
4, zinc oxide obtained by calcining is high productivity, good product quality and less amount of nodulation.



Features:
1. operating simplicity
2. efficiency optimization
3.  cost minimization


Products:

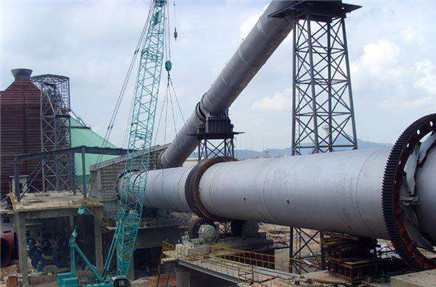

Working Principle of zinc oxide rotary kiln

1.With a certain slope to the level, the whole kiln body is supported by rollers and fitted with thrust rollers to control up and down movement of the kiln body.
2. Besides main driving unit for driving system, it is also fitted with the auxiliary driving unit so as to ensure the kiln body still can rotating when the main motor is powered off and prevent it from deforming. 3.The kiln head adopts housing type sealing and kiln rear uses axial contact sealing unit so that reliability of sealing could be ensured.

Technical Parameters:

Model

Capacity(T/D)

Main Motor

Main Reducer

Weight(T)





Power

Model

Model

Speed Ratio



Ø1.9/1.6×39m

72

30

JZT2-72-4

JZQ750-I-Z

48.57

66

Ø1.9×36m

84

37

YCT315-4A

ZS110-5-III

78.19

85.9

Ø2.2×45m

98.4

55

JZT82-6

ZA125

93.93

104

Ø2.5/2.2×55m

120

40

JZT81

ZS145-10-I

134.9

197.2

Ø2.5/2.2×63m

108

40

JZT81

ZS145-10-I

134.9

170.5

Ø2.5×40m

204

40

Z2-92

ZS125-2-I

134.9

143.6

Ø2.5×45m

180

45

JZT82-4

ZS125-4-I

69.71

148

Ø2.5×50m



30

JZT372-4

ZS145-9-V

122.8

173

Ø3×48m

360-480

75

YCT355-48

ZS145-7-II

100.4

170.561

Ø3.1/2.5×78m

216-240

75

Z4-225-31

ZS165-2-II

57.17

267.6

Ø3.2×48m

1000

160

ZSN4-280-21B

NSY56-28-II

28

252

Ø3.2×50m

1000

160

ZSN4-280-21B

NSY56-28-II

28

263

Ø3.2×52m

1000

160

ZSN4-280-21B

NSY56-28-II

28

280.8

Ø3.3×50m

1200

160

ZSN4-280-21B

NSY450-28-V

28

317

Ø3.6×70m

492

125

Z2-112

ZS177

79.22

376

Ø3.95×80m

700

2×90

Z4-250-32B

NZS995

56

412

Ø4×50m

960

90

ZDT-11M

ZS220-3-IV

63.88

463

Ø4×60m

2500

315

ZSN4-355-09z

ZSY630-35.5-I

34.601

487.5

Ø4.2×60m

3000

420

ZSN4-355-12

ZSY710-35.5-I

35.526

576.1

Ø4.8×75m

5000

630

ZSN4-400-12

JSY-800-1760

31.5

841


Note: No further notice if the technical parameters change.
