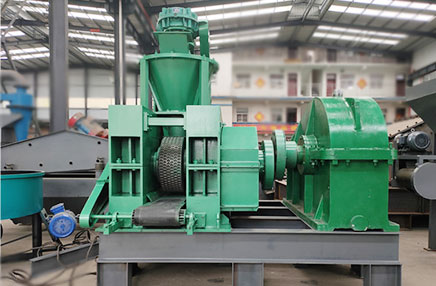

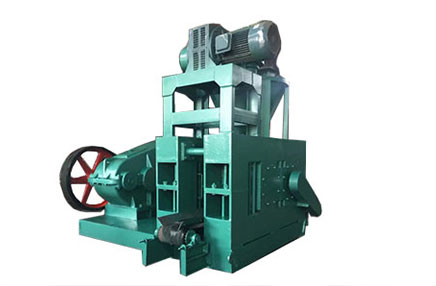

Introduction of Strong pressure briquetting machine:
Strong pressure briquetting machine is mainly used for pressing coal powder, slurry, middling coal, coking coal, coke powder and metallurgical powder and refractory. All the powdery materials that need to be put into furnace need to be pressed by strong pressure briquetting machine.




Structure of Strong pressure briquetting machine:

(1) Feeding part

Feeding part is mainly used for realizing quantitative feeding to make sure that materials evenly go into the space between the two rollers. The spiral feeder machine is driven by electromagnetic variable-speed motor through belt pulley and worm reducer to force the materials to be pressed into the main feeding mouth. Due to the constant torque of the electromagnetic variable-speed motor, when the pressing amount of the spiral feeder machine is the same with the needed material amount by the main engine, stable material supplying pressure can be ensured to stabilize the quality of the pellet. If the material supplying amount is high, the electricity of the feeder machine will be overload; if the material supplying amount is low, the materials will not be able to be pressed to pellet. For this reason, skillful operation technique is an important condition to ensure the normal work of ball press machine.

(2) Drive part

The main transmission system includes motor, V-belt, reducer, open gear and roller. The electromagnetic variable-speed motor will provide power for the electric motor and through belt pulley and cylindrical gear reducer, the power will be transmitted to driving shaft through the rod pin coupling. The driving shaft and driven shaft are ensured to operate synchronously through open gear. Behind the driven bearing pedestal, there is hydraulic equipment. The hydraulic protective device uses hydraulic pump to inject the high-pressure oil into the hydraulic cylinder to make the piston have axial displacement. The front connecting head of the piston rod is pressure onto the bearing pedestal to satisfy the pressure requirement for production.

(3) Forming part



The forming part mainly refers to the main engine part and the core part is roller. When there are too many materials between the two rollers or metal block goes into the rollers, the hydraulic cylinder piston rod will pressed, and the hydraulic pump will stop, and the energy accumulator will have buffer action on the pressure change. The overflow valve will start for oil return and the piston rod will have displacement to increase the gap between the two rollers, so that the hard materials will go through the rollers, and then the system pressure will resume to normal, this design can protect the roller from being damaged. According to the requirement for the press density, this machine can be adjusted in pressure, so that the production process is mobile and flexible.

Usage and features:



Strong pressure briquetting machine is especially suitable for powdery materials.

Products:

Strong pressure briquetting machine is mainly used for pressing coal powder, slurry, middling coal, coking coal, coke powder and metallurgical powder and refractory. All the powdery materials that need to be put into furnace need to be pressed by strong pressure briquetting machine.

Technical Parameters:
Type Diameter of roller (mm) Roll width(mm) Motor power (kw) Designed output (t/h) Weight(t)
TD520-150 520 196 55 2.2-3.5 13
TD650-220 650 200 110 4-6.5 19.2
TD750-300 750 280 185 6-8.5 34
TD1000-350 1000 440 250 10-15 50.8
TD1000-450 1000 504 280 14-17 58.5
TD1000-500 1000 504 315 15-20 58.5
TDA1000-500 1000 600 280 17-21 56.5
TDA1000-540 1000 900 185Kw×2 30-35 60
TD1200-800 1200 900 280Kw×2 40 110
TD1400-1000 1400 1000 400Kw×2 50 156

Note: No further notice if the technical parameters change.
