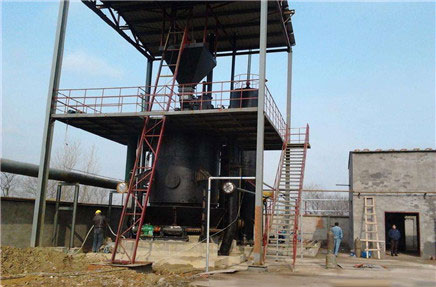

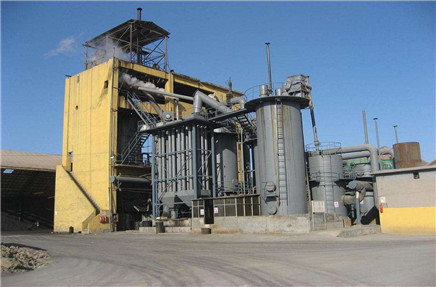

QM-1 Coal Gasifier

Feature】:  Energy-saving and environment-friendly

Shipping Port】:Shanghai,Qingdao,Tianjin.

Delivery】:15-30days

【Application】:Widely used in all kinds of kiln,dryer and other dewater equipment.

E-mail: service@tdaxy.com

get a quote online faq
Advantages:

1.Energy-saving and environment-friendly
The calories of reburning 1kg satandardized coal equals to that of 0.6kg gasoline 0.3kg liquefied petroleum gas and 6.5 degrees of electricity.
The smoke emission complies with the GB9078-96 environment-friendly standard.
2.According to your materialcustomized design
Our company can design and produce air heating furnace according to users' requirement.
We also undertake the renovation of all kinds of oil fuel natural gas coal fuel and electric air heating furnace with the heating cost 70% less than electricity 40 to 60% oil 30% gas.
3.Humanized design:
Reciprocating grate cleaner: strong ability to break and loosen slags as well as to ventilate with slim chance of slagbonding.
Special ash grate design: grate protected by low-temperature slags to prolong the grate's service time largely.
Extensive waterseal explosion preventing grooves at the part of ash hopper: apt to react and safe to use.
Combination of air producing and other heating equipment: convenient to control temperature.
Gas produced immediately by burning coal when it is needed: needless to remove ash reduce temperature or add pressure with the manufacturing cost largely reduced.
Fuel adding and slag removing operated by machines: centralized-control easy to handle and low labor intensity.
4.Convenient installation:
Installed on ordinary ground special ground unwanted.
5.Flexibility assorted with varieties of other heating equipment:
Widely used in the environment-friendly and energy-saving technological renovation of gas-processing heating furnace gas forging furnace gas crucible furnace gas mold furnace grilled ladle gas furnace sand resin heating gas regenerates glass melting gas furnace ceramic gas furnace and the technological renovation of gas corhart smoke exhausting kiln and tunnel kiln as well as the assorted heating source renovation of drying burning and heating equipment whose temperature requirement is below 1350℃.


Products:

A new type of highly efficient energy-saving and environment-friendly products which were developed independently by our company.

Flexibility assorted with varieties of other heating equipment,widely used in the environment-friendly and energy-saving technological renovation of gas-processing heating furnace, gas forging furnace, gas crucible furnace, gas mold furnace, grilled ladle gas furnace, sand resin heating gas regenerates, glass melting gas furnace, ceramic gas furnace and the technological renovation of gas corhart smoke exhausting kiln and tunnel kiln, as well as the assorted heating source renovation of drying, burning and heating equipment whose temperature requirement is below 1,350℃.

Technical Parameters:


Detial Specification(QM-1 Series)
Chamber diameter(mm) 1600 1800 2000 2400 2600 3000
Section area(m2) 2 2.54 3.14 4.52 5.31 7.07
Fuel height(mm) 1000 1000 1000 1000 1000 1000
Fire height(mm) 100~300
Ash height(mm) 100~300
Applicable fuel Non-caking coal anthracitecoke
Fuel size(mm) 13~25 25~50
Coal consumption(Kg/h) 350~460 500~600 500~720 700~1040 850~1200 1700~2000
Gas agent Air steam
Gas output(Nm3/h) 1200~1600 1500~2100 1750~2500 2500~3600 3000~4300 6000~7000
Ash tray speed(r/h) 3.5 3.5 2.23 2 1.7 1.7
Net heating value(KJ/Nm3) 5020~5670
Exit temperature(℃) 400~550
Outlet pressure(Pa) 980~1470 1470-1960
Blast pressurePa <4000 <6000
Saturated temperature(℃) 50-65
 Equipment weight(T) 12 15

Note: No further notice if the technical parameters change.
