Rotary dryers

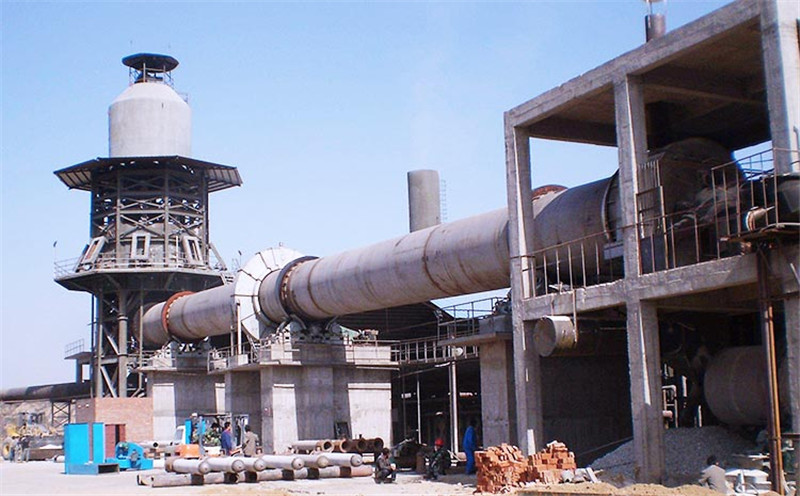

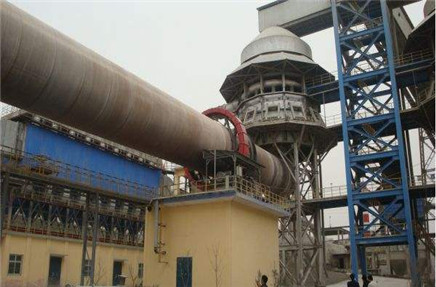

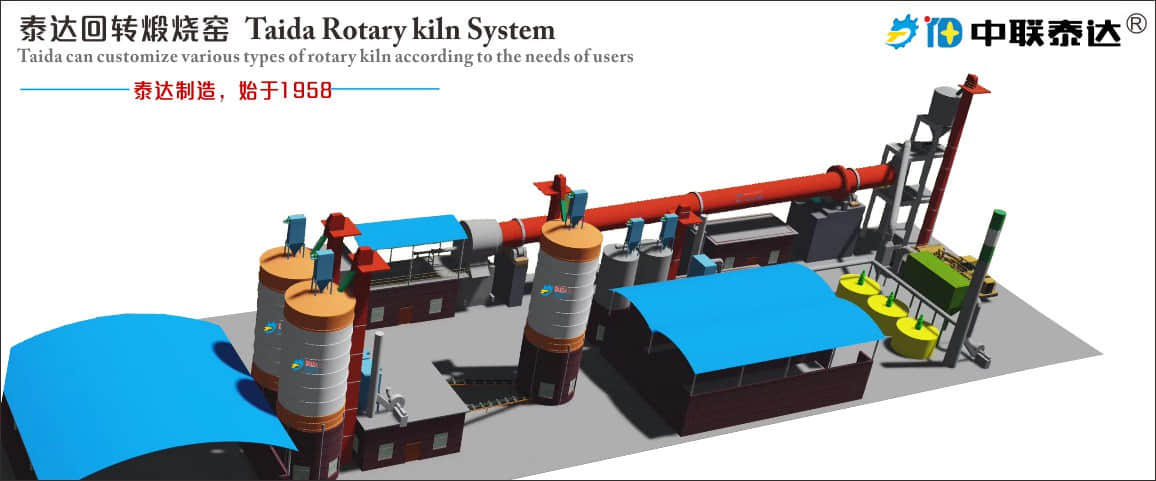

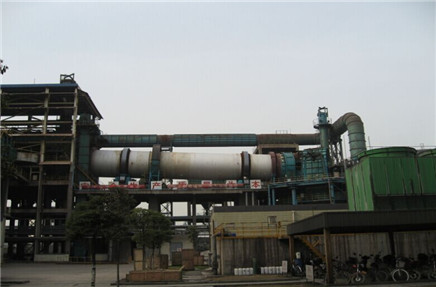

Kaolin Calcining Kiln

Raw materials】:dolomite, kaolin, cement, limestone, active carbon and coke;
Motor power】:55-950×2kw
Weight】:149.61-1659t
Application range】:paper-making, coating, metallurgy and building material industry;

E-mail: service@tdaxy.com

get a quote online faq
Advantages:

1. Mature technology; high production output; great production capacity;
2. High quality of finished products; less wearing parts; easy maintenance;
3. Stable performance; simple structure; high running ratio;
4. Even and uniform quality; fixed structure; less consumption; wide applications;
5. Fine granularity, less energy consumption;

Products:

Under high temperature, kaolin rotary kiln rotates slowly. The maintenance of its auxiliary parts and thermal control system have much to do with the safe running and high efficiency. The maintenance focus of driving devices are lubrication, running state, dynamic monitoring and mesh accuracy of gears. The safe accuracy of supporting device decides whether the rotary kiln can run reliably. During running process, the load distribution, layout form, pressure control are supposed to be controlled properly. The quality of sealing device affects thermal regulation and running cost directly. Arrangement and analysis of daily data should be strengthen, which is beneficial to management.

Technical Parameters:
Specifications (m) Dimensions Motor power (kw) Total weight (t) Remarks
Diameter (m) Length (m) Inclination (%) Output (t/h) Rotary speed (r/min)
Φ2.5×40 2.5 40 3.5 180 0.44-2.44 55 149.61 With vertical preheater
Φ2.5×50 2.5 50 3 200 0.62-1.86 55 187.37 ----
Φ2.5×54 2.5 54 3.5 204 0.48-1.45 55 196.29 ----
Φ2.7×42 2.7 42 3.5 320 0.10-1.52 55 198.5 ----
Φ2.8×44 2.8 44 3.5 400 0.437-2.18 55 201.58 Pre-calcining kiln
Φ3.0×45 3 45 3.5 500 0.5-2.47 75 210.94 ----
Φ3.0×48 3 48 3.5 700 0.6-3.48 100 237 Pre-calcining kiln
Φ3.0×60 3 60 3.5 300 0.3-2 100 310 Bauxite calcining kiln
Φ3.2×50 3.2 50 4 1000 0.6-3 125 278 Pre-calcining kiln
Φ3.3×52 3.3 52 3.5 1300 0.266-2.66 125 283 Preheat decomposition kiln
Φ3.5×54 3.5 54 3.5 1500 0.55-3.4 220 363 Preheat decomposition kiln
Φ3.6×70 3.6 70 3.5 1800 0.25-1.25 125 419 Residual heat electricity generation kiln
Φ4.0×56 4 56 4 2300 0.41-4.07 315 456 Preheat decomposition kiln
Φ4.0×60 4 60 3.5 2500 0.396-3.96 315 510 Preheat decomposition kiln
Φ4.2×60 4.2 60 4 2750 0.4-3.98 375 633 Preheat decomposition kiln
Φ4.3×60 4.3 60 3.5 3200 0.396-3.96 375 583 Preheat decomposition kiln
Φ4.5×66 4.5 66 3.5 4000 0.41-4.1 560 710.4 Preheat decomposition kiln
Φ4.7×74 4.7 74 4 4500 0.35-4 630 849 Preheat decomposition kiln
Φ4.8×74 4.8 74 4 5000 0.396-3.96 630 899 Preheat decomposition kiln
Φ5.0×74 5 74 4 6000 0.35-4 710 944 Preheat decomposition kiln
Φ5.6×87 5.6 87 4 8000 Max4.23 800 1265 Preheat decomposition kiln
Φ6.0×95 6 95 4 10000 Max5 950×2 1659 Preheat decomposition kiln

Note: No further notice if the technical parameters change.
