Rotary dryers

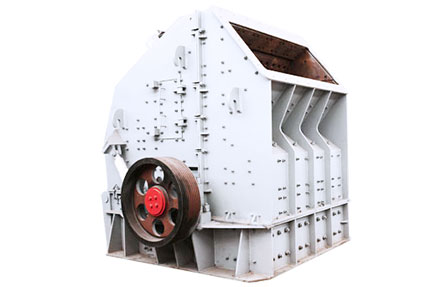

Impact crusher

Supply Ability: 20 Set/Sets per Month
Production capacity: 30-550t/h
Port: Qingdao,Tianjin, Shanghai or others
Feature: small size, simple structure, high crushing ratio, low energy consumption, high production capacity
【Supply Ability】:20 Set/Sets per Month
【Production Capacity】:30-550t/h
【Port】:Qingdao,Tianjin, Shanghai or others
【Feature】:small size, simple structure, high crushing ratio, low energy consumption, high production capacity

E-mail: service@tdaxy.com

get a quote online faq
Advantages:

1.The impact crusher is with unique simple structure, key-less connection.
2. Impact breaker is with high-chromium plating hammer and special impact liner plate.
3. The impact breaker is capable of highly efficient hard rock crushing while saving energy.
4. The final product of Impact crushing machine is in the shape of a cube, the discharge grain size is adjustable to simplify the crushing circuit.
5. Easy maintenance, reliable performance.

Products:

impact crusher

The material falls to the high-speed rotating turn plate. With the effect of strong centrifugal force, the material in the plate hammer function area will impact with hammers on the rotor. Then the material will be thrown into the counter attack device for second crushing. After that, the materials will be rebounded to the former area from the impact lining board for further crushing. This process will be repeated until desired purpose is achieved. The finished products will be discharged from the discharge port. To control the granularity and the shape of the material, you can adjust the space between the impact rack and the rotor.

Technical Parameters:
Model Specification
(mm)
Feed
opening
(mm)
The Maximum
Feeding Size
(mm)
Capacity
(t/h)
Power
(kw)
Total
weight
(t)
Overall
dimension
(L×W×H)
(mm)
PF-1007 Φ1000×700 400×730 300 30-70 37-45 12 2330×1660×2300
PF-1010 Φ1000×1050 400×1080 350 50-90 45-55 15 2370×1700×2390
PF-1210 Φ1250×1050 400×1080 350 70-130 110 17.7 2680×2160×2800
PF-1214 Φ1250×1400 400×1430 350 100-180 132 22.4 2650×2460×2800
PF-1315 Φ1320×1500 860×1520 500 130-250 220 27 3180×2720×2620
PF-1520 Φ1500×2000 830×2040 700 300-550 315-400 50.6 3959×3564×3330
PF-1820 Φ1800×2000 1260×2040 800 600-800 630-710 83.21 4400×3866×4009

Note: No further notice if the technical parameters change.
