Rotary dryers

Fish Dryer

【Capacity】:50 t to 300 t
【Applications】:widely used in land or floating fish meal plants, krill meal plants, bone and meat meal plants, rendering plants, shrimp meal plants, feather meal plants, poultry meal plants, hydrolysis meal plants and etc.
【Structure】: horizontal cylinder and steam heated rotor.

E-mail: service@tdaxy.com

get a quote online faq
Advantages:

1.     Fishmeal dryer has double blades, fast drying speed and high production;
2.     Heating with double layer steam jacket;
3.     The fishmeal dryer could be directly restarted with loading when sudden-stop during operation, avoid emptying inside materials;
4.     With steam jacket, increase drying area, properly improve drying efficient, to assure materials dried adequately.
5.     Comprehension handles, compact structure, convenient open and shut for the fishmeal dryer;
6.     The main shaft is made of super thick quality seamless pipe;
7.     Heavy reduction gearbox as main drive motor with liquid coupling for on load start;
8.     Large heating area, good drying effect to guarantee the quality of fishmeal;
9.     With steel foundation, no concrete foundation, changeable installation position;

Products:

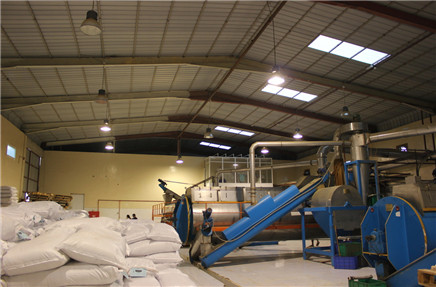

We are the professional manufacturer of complete fishmeal and oil plant and in China. The processing capacity ranges from 50Ton, 80Ton, 100Ton, 150Ton, and 200Ton to 300Ton raw material per 24 hours which can be used for both land and floating. We also improve fish oil refinery plant with processing capacity 10T, 20T, 30T and 35T crude fish oil in 24 hours, which could be part of the fish meal plant. We are the only one manufacturer of both fishmeal and fish oil plants in China.

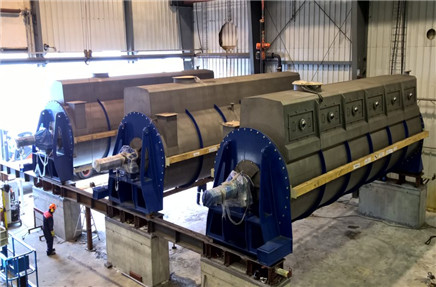

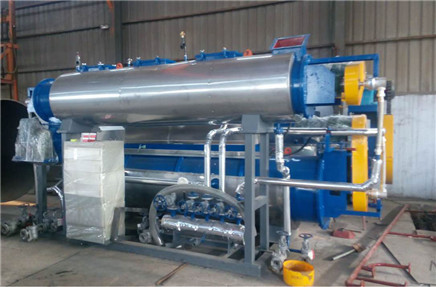

The main Fishmeal Dryer, consists of a horizontal cylinder and a steam heated rotor which is equipped with heating plates. There are propellers in the plates, the angel of which could be adjusted, to push the meal ahead. In the Fishmeal Dryer, the steam through the rotor is distributed through the heating plates evenly. The steam and the condensed water flow separately in the coiled tubes in the heating plates.

Technical Parameters:
Specifications Capacity (t/24h) weight (t) Power(kW) Size(m)
D-XH-50 > 50 19.0 37.0 8.5× 1.9× 2.6
D-XH-80 > 80 22.5 45.0 10.0× 1.9× 2.6
D-XH-100 > 100 26.0 55.0 11.5× 1.9× 2.6
D-XH-150 > 150 37.0 75.0 12.0× 2.2× 3.2
D-XH-200 > 200 45.0 90.0 13.0× 2.2× 3.3
D-XH-250 > 250 50.0 110.0 13.5× 2.2× 3.3
D-XH-300 > 300 55.0 110.0 14.0× 2.2× 3.3

Note: No further notice if the technical parameters change.
