Rotary dryers

Double-cylinder wood chip dryer

【Capacity(t/h)】:0.5-22

【Power】:4-22KW

【Delivery】:15-30 days

【Application】:widely used in building materials, metallurgy, and chemical industry,wood , wood flour , sawdust , charcoal , forage , straw and other agricultural wastes.

E-mail: service@tdaxy.com

get a quote online faq
Advantages:

1.Large capacity dryer machine
2.High heating drier
3.Easy to operation
4.It is professionally designed for drying different kinds of wood chips,sawdust.
5.Reasonable structure, well-produced, high yield, low consumption,operating convenience.
6.The humidity will be separated from the materials by hot air-flow and changed into vapor to be discharged into the atmosphere. Then the materials would be dried.
7.High degree of mechanization, large production capacity, continuous option
8.Reliable performance, high efficiency on heat power, Uniform on dry, less time on cleaning machine.
9.Strong resistance to overload, operating smoothly and high reliability
10.ISO:9001-2008,SGS

Features:

1.Air heating system is able to allow highly efficient removal of water from fresh harvested forage, and the maximum durability of dehydrated forage.
2.Non-pollution to the target materials guarantees minimal loss of their color, favor, and nutritional ingredients;
3.Smoke collector working with the air heating system adopts water-recycled wet-type collecting method, and ensures the exhausted gas to satisfy the environmental protection requirement as well as the lowest water consumption.

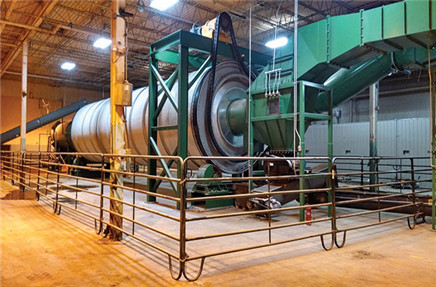

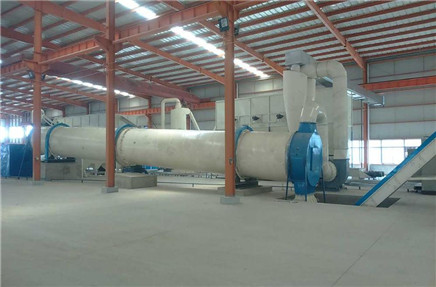

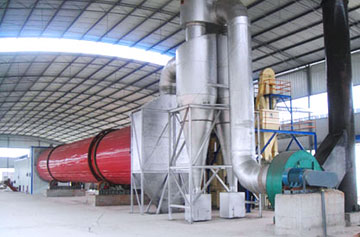

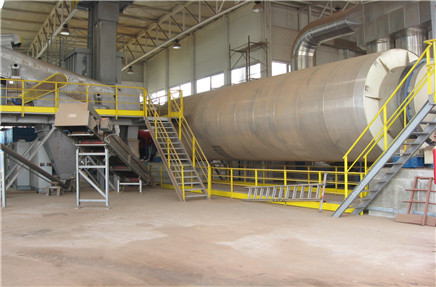

Client Plant


New Energy-saving Wood Chips Drying Production Line in Vietnan


Products:

The rotary drum drier is composed of heating stove, main rotary body, which can reduce moisture from 60% to 10%. The moisture evaporating capacity of our dryer can reach to (250kg per hour to 8000kg) per hour. Different density materials, the final product are not the same; also for different moisture of raw materials, which could get the different final capacity.

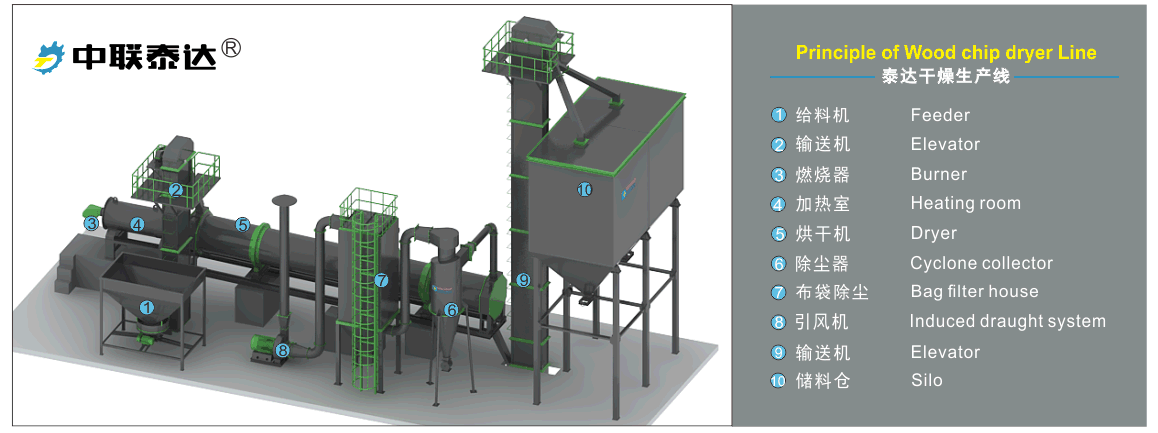

The Working Principle of Wood Chips Dryer:

1.The wood chip dryer is auto-combustion device provides heat resource for our rotary drier, which adopts down-flow heating method.
2.When the materials are fed into the wood chip dryer, it flows down as a result of gravity. Meanwhile, they are repetitively
3.Wood chip dryer scattered in the air so that they are in full contact with the hot air.
4.Wood chip dryer Dying process needs to consume large amount of heat energy. 5.In order to save energy, some materials with high moisture content, suspending liquid and solution which contain solid objects.


Technical Parameters:

Model

TDG800

TDG1000

TDG1200

TDG1500

TDG1800

TDG2000

TDG2200

Capacity

≥500kg/h

≥1000kg/h

≥1300kg/h

≥1600kg/h

≥1800kg/h

≥2000kg/h

≥2200kg/h

Power

4kw

5.5kw

7.5kw

15kw

18kw

18.5kw

22kw

Weight

5T

6T

8T

18.2T

26T

28T

35T


Note: No further notice if the technical parameters change.
