Cement Ball Mill

【Max feeding size】: 25mm

【Capacity】:0.65-90t/h

【Power】:15-1120KW

【Processible Materials】:Cement, silicate, building material, refractory material, chemical material and all kinds of ores

E-mail: service@tdaxy.com

get a quote online faq

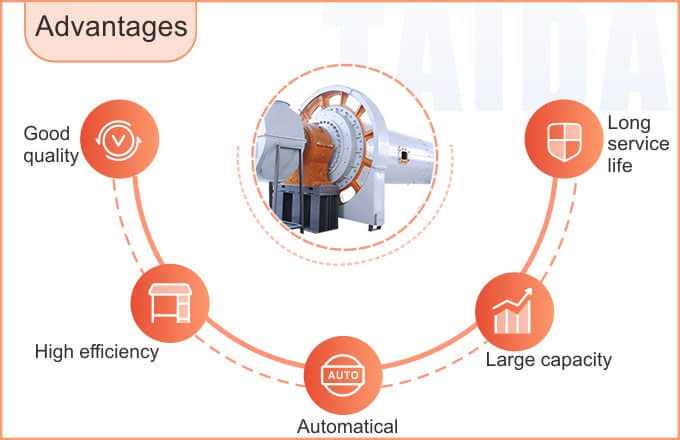

Advantages:

Advantages:
1. When the diameter of ball mill is less than 3200mm its conventional configuration is using rolling bearing instead of bush sliding bearing energy saving 10% - 20%;
2. When the diameter of ball mill is more than 2700mm its conventional configuration is using slow driving device for installing liner and maintenance;
3. When the diameter of ball mill is less than 1500mm its conventional configuration is monolithic large chassis then reduce installation requirements and shorten installation time;
4. When the power of ball mill is less than 110 KW it uses cage asynchronous motor; When the power of ball mill is more than 110 KW it uses wire wound asynchronous motor; When the power of ball mill is more than 400 KW it uses high voltage (6 KV or 10 KV) asynchronous motor or the TDMK series high voltage (6 KV or 10 KV) synchronous motor;
5. Drum Feeder Spiral Feeder and Joint Feeder are available for meeting different working condition;
6. The gear lubrication mode has grease lubrication thin oil lubrication and automatic oil mist lubrication for meeting different working condition;
7. The bearing lubrication has manual and electric grease lubrication pump for automatic lubrication;
8. There are a variety of liner plates type to select. Compared to A series standard type B series energy-saving type can save energy 10% - 20%.
Products:

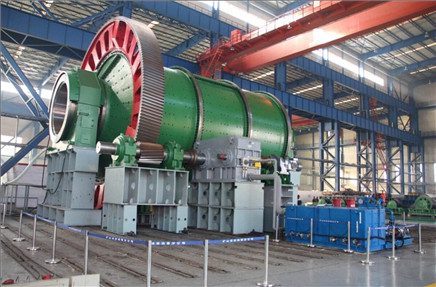

        TD series ball mill is mainly used for grinding in mining (metallic minerals and non-metallic minerals), cement, refractories, chemical, power plant, aluminum ,building material, glass, ceramic, steel slag and fly ash, ect.  It follows more crushing and less grinding principle to save energy.  The feed size to ball mill shall be smaller than 25mm, the output size can be adjusted by revising steel balls ratio.

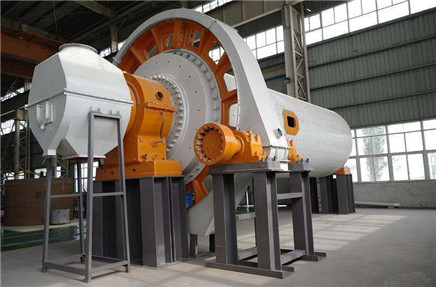

        According to discharge mode, there are TD series dry type grate ball mill, TDS series wet type grate ball mill, MQY series wet type overflow ball mill, TD series peripheral discharge type ball mill; According to liner type, there are A series of (high manganese steel liner, magnetic liner) standard type and B series of (rubber liner, high aluminum liner, silica liner, ceramic liner) energy-saving type; According to transmission mode, there are edge driving ball mill and center driving ball mill; According to chamber quantity, there are single chamber type, double chambers type and multiple chambers; According to processing technic, there are open circuit and closed circuit (matched with classification equipment).  We are capable of designing non-standard, special ball mill as per client requirement.

Products:

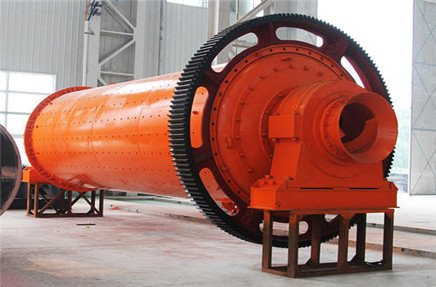

Cement Ball Mill adopts automatic aligning double row spherical roller bearings, small running resistance, and energy saving effect is remarkable. In the cylinder part, a section of conical cylinder is added to the material-out port of original cylinder, which does not increase the effective volume of the mill, but also make the medium distribution more reasonable. The product is widely used in non-ferrous metals, black metals, non-metal mining and chemical industry, building materials industry for the use of grinding materials.

Technical Parameters:
Type Rotational speed
(r/min)
Balls weight
(t)
Feeding size
(mm)
Output size
(mm)
Capacity
(t/h)
Motor power
(kw)
Weight
(t)
Ф900×1800 42 1.4 ≤20 0.075-0.89 0.65-2 18.5 3.6
Ф900×2100 41 1.7 ≤15 0.075-0.83 0.7-3.5 15 3.9
Ф900×3000 41 2.7 ≤20 0.075-0.89 1.1-3.5 22 4.5
Ф1200×2400 36 3.5 ≤25 0.075-0.6 1.5-4.7 30 11.5
Ф1200×2800 31 6.8 ≤25 0.075-0.6 1.5-5 37 13
Ф1200×4500 32 5.5 ≤25 0.074-0.4 1.6-5.8 55 13.8
Ф1500×3000 31 6.8 ≤25 0.074-0.4 2-7 75 17
Ф1500×4500 27 10.5 ≤25 0.074-0.4 3.5-8 110 21
Ф1500×5700 27 15 ≤25 0.074-0.4 3.5-10 130 24.7
Ф1830×3000 26 13 ≤25 0.074-0.4 4-12 160 28
Ф1830×3600 26 15 ≤25 0.075-0.4 5-13 160 33.5
Ф1830×4500 26.5 17 ≤25 0.075-0.6 5.5-20 185 35
Ф1830×7000 26 25 ≤25 0.074-0.4 6.5-22 210 36
Ф2100×3600 24 21 ≤25 0.074-0.4 6.5-22 185 46.8
Ф2200×5500 21 30 ≤25 0.074-0.4 10-20 245 48.5
Ф2200×6500 21.7 35 ≤25 0.074-0.4 14-26 380 52.8
Ф2200×7500 21 33 ≤25 0.074-0.4 16-30 380 56
Ф2400×3000 20.6 30 ≤25 0.075-0.4 15-50 245 59
Ф2400×4500 21 33 ≤25 0.074-0.4 15-60 380 65
Ф2700×3600 20.6 39 ≤25 0.074-0.4 20-70 400 91.3
Ф2700×4000 20.7 40 ≤25 0.074-0.4 20-80 400 94
Ф2700×4500 20.7 48 ≤25 0.074-0.4 20-90 430 102
Ф3200×4500 18 65 ≤25 0.075-0.4 Depends 800 137
Ф3600×4500 17 90 ≤25 0.074-0.4 Depends 850 158
Ф3600×6000 17 110 ≤25 0.074-0.4 Depends 1250 175
Ф3600×8500 18 131 ≤25 0.074-0.4 45.8-256 1800 252
Ф4000×5000 16.9 121 ≤25 0.074-0.4 45-208 1500 203
Ф4000×6000 16.9 146 ≤25 0.074-0.4 65-248 1600 218
Ф4000×6700 16.9 149 ≤25 0.074-0.4 45-252 1800 238
Ф4500×6400 15.6 172 ≤25 0.074-0.4 54-306 2000 280
Ф5030×6400 14.4 216 ≤25 0.074-0.4 68-386 2500 320
Ф5030×8300 14.4 266 ≤25 0.074-0.4 88-500 3300 403
Ф5500×8500 13.8 338 ≤25 0.074-0.4 108-615 4500 525

Note: No further notice if the technical parameters change.
