Rotary dryers

Carbon regeneration kiln

Raw materials】: Carbon
【Delivery】:15-30 days

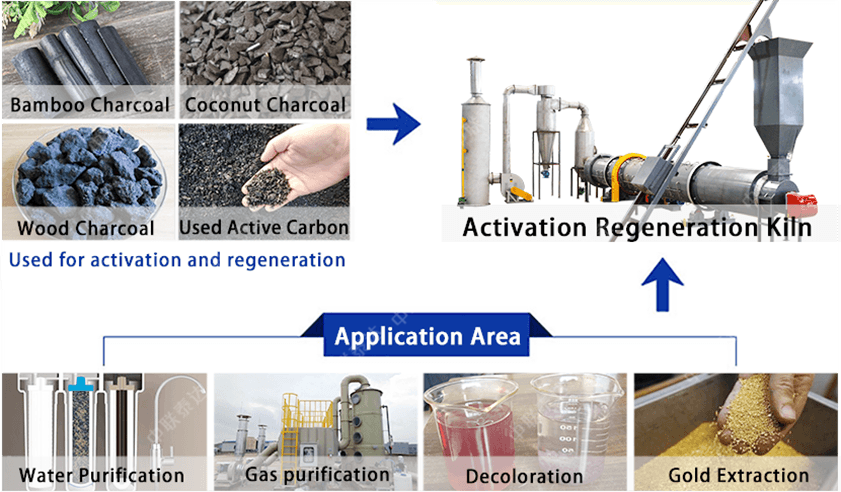

Application】:Carbon regeneration kiln suitable for large-scale activated carbon project.


get a quote online faq

Carbon  regeneration rotary kiln performance characteristics

1.Simple structure, has high furnace unit volume, long service life, high rates of operation, stable operation, high heat transfer efficiency, low heat consumption,
2.Automatic temperature control, temperature alarm, the two air inlet of waste heat utilization, long service life of kiln lining,
3.Advanced sealing technology and device, stable operation, high output characteristics.

Carbon  reactivation rotary kiln working principle

Carbon regeneration rotary kiln working temperature can reach (950℃~ 1050℃) calcined superfine kaolin technology. At present our country technology is mature, advanced, represents the ultra-fine kaolin calcining technology development direction. The calcination technology of low energy consumption, high output, product by dehydration, decarbonization whitening, stable performance, can be used for making paper and paints and other industrial fields

Carbon regeneration rotary kiln process:

1.Carbon regeneration  rotary kiln equipment by rotary cylinder, supporting device, Gear wheel support device, transmission device, kiln, kiln tail sealing device, pulverized coal injection pipe device ( large equipment also comprises hydraulic pipeline system, cooling air duct ) and other components.
2.The kiln body and the level of a certain slope, the whole kiln body by the supporting wheel device support, and control the kiln body up-and-down movement of the catch wheel device.
3. The transmission part in addition to set the main transmission, is provided to ensure that the main transmission interruption of power, can still make the kiln body, preventing the slowly rotating kiln auxiliary driving device. Kiln head adopts clamshell seal, kiln with axial contact type sealing device, ensures the sealing reliability.



Taida machinery is expert of Carbon regeneration kiln manufacture, fully absorb the international advanced level of technology in the production, design and manufacturing process, equipment quality and production performance has made a qualitative leap. Application of new technology improved the  kiln more energy saving and environment friendly, reduce production costs, improve efficiency, create a huge production efficiency for our customers.
The carbon which is mainly composed of high carbon content of the material, such as wood, coal, shell, bone, petroleum residue. But to coconut shell as the most commonly used raw materials, under the same conditions, coconut shell active quality and other characteristics are the best, because it has the largest surface area.
Zhengzhou TaiDa Carbon regeneration kiln are widely applied in the active carbon, ceramic sand, clay, clay, clayey silt, fly ash, slag, shale, dolomite, kaolin clay, bauxite, refractory furnace charge, cement, limestone, iron, titanium bauxite ore, activated carbon, coke, mineral powder, aluminum oxide, magnesium oxide, zinc oxide, special cement and other material ceramsite calcined and production.

Technical Parameters:
Kiln demensions Output
Rotational speed
Motor power
Inclination   (%) (t)
Φ1.4×33 1.4 33 3 0.9-1.3 0.39-3.96 18.5 47.5
Φ1.6×36 1.6 36 4 1.2-1.9 0.26-2.63 22 52
Φ1.8×45 1.8 45 4 1.9-2.4 0.16-1.62 30 78.2
Φ1.9×39 1.9 39 4 1.65-3 0.29-2.93 30 77.59
Φ2.0×40 2 40 3 2.5-4 0.29-2.93 37 119.1
Φ2.2×45 2.2 45 3.5 3.4-5.4 0.21-2.44 45 128.3
Φ2.5×40 2.5 40 3.5 9.0-10.5 0.44-2.44 55 149.61
Φ2.5×50 2.5 50 3 6.25-7.4 0.62-1.86 55 187.37
Φ2.5×54 2.5 54 3.5 6.9-8.5 0.48-1.45 55 196.29
Φ2.7×42 2.7 42 3.5 10.0-11.0 0.10-1.52 55 198.5
Φ2.8×44 2.8 44 3.5 12.5-13.5 0.437-2.18 55 201.58
Φ3.0×45 3 45 3.5 12.8-14.5 0.5-2.47 75 210.94
Φ3.0×48 3 48 3.5 25.6-29.3 0.6-3.48 100 237
Φ3.0×60 3 60 3.5 12.3-14.1 0.3-2 100 310
Φ3.2×50 3.2 50 4 40.5-42 0.6-3 125 278

Note: No further notice if the technical parameters change.
