Rotary dryers

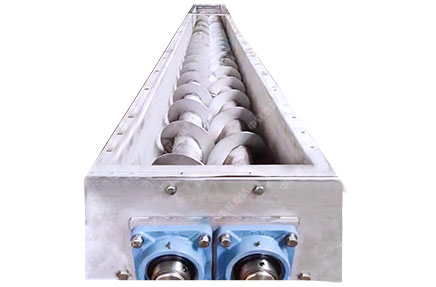

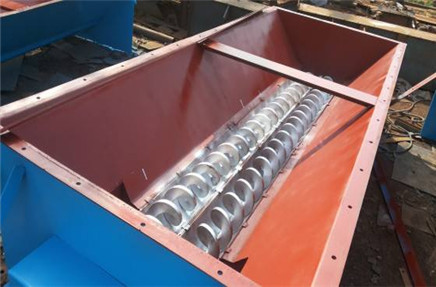

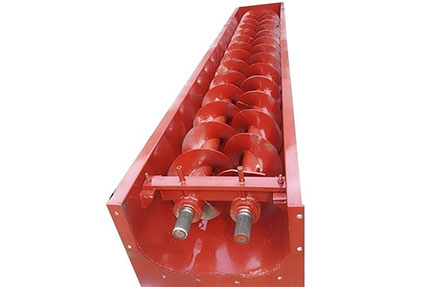

Double screw conveyor

【Screw Speed】: 50-120r/min

【Power(KW)】:0.55-100

【Transmission Capacity】:4.5-139(m3/h)

【Application】:Widely used in all kinds of powder, granule and loose materials such as small block,sludge,corn and so on.

E-mail: service@tdaxy.com

get a quote online faq
Advantages:


1.high qulaity end bearing
2.reasonable design,horizontal feeding powders
3.low energy consumption
4.long using time


Products:

Screw conveyor is mainly used in all kinds of powder, granule and loose materials such as small block the level of vertical conveyor and ascension. Screw conveyor is made of steel, screw conveyor is used to transport high temperature of the powder or solid particles chemical industry, building materials with the product. The internal of screw conveyor is a pipe, the spiral in pipe welding.
simple structure and cross section of small size, good sealing, reliable working, manufacturing low cost, easy to middle pack material and unloading, transport direction can reverse, also can simultaneously to the contrary two direction transportation. Conveying process but also on the materials are stirring, mixing, heating and cooling homework. Through the loading and unloading the material flow can be adjusted.

Technical Parameters:
Model GX150 GX160 GX200 GX250 GX300 GX400 GX500 GX600
Screw Diameter(mm) 150 160 200 250 300 400 500 600
Screw Distance(mm) 120 150 160 200 240 320 400 480
Screw shaft speed(r/min) 120 120 100 90 80 71 63 50
Power 0.55-100KW
Teducer ZQ250-ZQ850
Transmission capacity(m3/h) 4.5 6.5 8.5 16.5 32.5 54 79 139
Transmission Length (m) ≤70
slope ≤15°

Note: No further notice if the technical parameters change.
