Rotary dryers

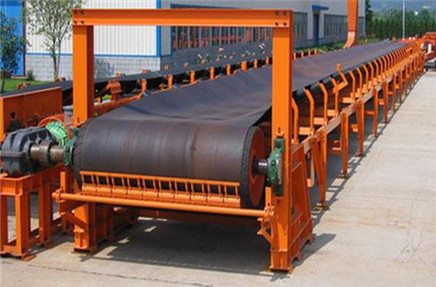

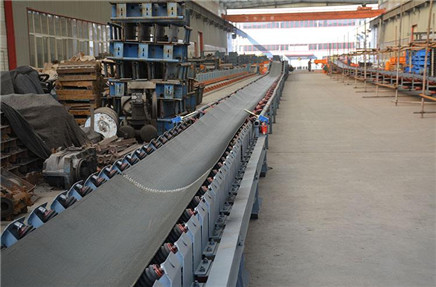

Belt Conveyor

【Conveying Speed】: 1.25-2.0m/s

【Conveying Distance】:10-40m

【Conveying Capacity】:30-800t/h

【Application】:Sand material field, mining, metallurgy, ore beneficiation, coal mining, etc.

E-mail: service@tdaxy.com

get a quote online faq
Advantages:

1. Large capacity long distance transport transport smoothly;
2. Without relative motion between material and conveyor the noise is low;
3. Simple structure convenient maintenance lower energy consumption high standardization degree of components.

Products:

TD series belt conveyor can transport various kinds of material economically and efficiently , and be used as continuous production link between production equipments, in order to realize the continuity and automation of production process , and improve the production efficiency, reduce labor intensity.

It has the advantages of simle structure, large delivery capacity, simple structure, convenient maintenance and standardized components.It is widely used in the fields such as mining, metallurgy and coal to convey incompact materials or the end product materials. To meet different layout operating line demands, materials can be conveyed by single machine or several machines or even combination with other conveying facilities.

Belt conveyor can work under the tempreture between -20℃ and +40℃. The tempreture of materials to convey should be below 50℃.

Technical Parameters:
Belt width (mm) Length(m) Power(Kw) Speed(m/S) Capacity (t/h)
400 ≤12/2.2 12-20/2.2-4 20-25/3.5-7.5 1.25-2.0 30-60
500 ≤12/3 12-20/3-5.5 30-30/5.5-7.5 1.25-2.0 40-80
650 ≤12/4 12-20/4-5.5 20-30/5.5-11 1.25-2.0 80-120
800 ≤6/4 10-15/4-5.5 15-30/5.5-15 1.25-2.0 120-200
1000 ≤10/5.5 10-20/5.5-11 20-40/11-22 1.25-2.0 200-320
1200 ≤10/7.5 10-20/7.5-15 20-40/15-30 1.25-2.0 320-480

Note: No further notice if the technical parameters change.
