Rotary dryers

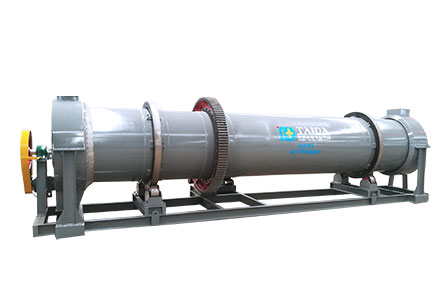

Chicken Manure Dryer

【Raw materials】: This dryer uses fresh chicken manure dairy manure as raw material without any chemical component.

【Delivery】:15-30 days

【Shipping ports】:Shanghai Qingdao or Tianjin

【Application】:For chicken manure and pig manure ,etc

E-mail: service@tdaxy.com

get a quote online faq
Advantages:

Advantages:
1.Our Chicken manure dryer is a low-fuel-consumption and high efficiency of drying equipment:
2.Can be used to dry the material with a moisture content below 85% to a final moisture content below 13%.
3.Applicable in animal farming food brewing sugar and pharmaceutical industries dealing with high humidity waste as well as a variety of chemical raw materials such as chicken manure 4.For resource development and good environmental protection equipment.
5.The equipment uses downstream drying process especially suitable for fast drying the humidity materials which need to preserve nutrition for example the drying of fresh chicken manure can achieve the purposes of drying sterilization deodorant and preservation of nutritional.
6.Equipped with high-speed rotating drum of crushing devices which increases the contact area between material and drying medium the internal unique equipment design makes materials difficult to adhere to the drum wall panels and parade.
7.The complete machine has the effects of heat preservation good sealing performance and the fact that the thermal efficiency considerably higher than the general drum dryer.
8.The dryer structure is compact easy to install and debug and using small floor area.
9.Drum and crushing device use stepless speed regulating devices which can adapt to the different requirements of the drying materials。
Features:
1 The rotating speed of the rotary drum and breaking device is adjustable with continuous running.
2  It adopts moving and seal drying technics which reduces the energy consumption.
3  It is of few malfunction low maintenance cost and low power consumption.
4  Besides drying it can sterilize and deodorize.

Products:

This dryer uses fresh Chicken Manure Dryer, dairy manure as raw material without any chemical component. Due to the chicken and pigs' poor digestion, only 25% nutrition can be absorbed with 75% nutrition in the feed being exhausted as manure. So the dried product contains nitrogen, phosphorus, potassium, organic matter, amino acid, and protein. The chicken manure dryer creates economic benefit for the enterprise as well as makes great contribution to the human environmental engineer.
1.Facilities and work principle of Chicken manure dryer:
The complete sets of equipment mainly is composed of the crushing drum dryer, burning furnace, feed spiral, output spiral, pipeline, dust collector, airlock, air induced fan, electric control cabinet, and other components.
2.Work principle of Chicken manure dryer:
Conveyed from the feed screw directly into the dryer drum, raised by the drum wall panels repeatedly, and scattered by the crushing blow dispersion devices.
Materials and the negative high-temp media are combined sufficiently to complete heat and mass transfer process.
Result of the drum wind angle and induced air, feed materials move slowly, and discharged from the spiral after drying, exhaust gas handled by the dust precipitator, venting to the atmosphere.

Technical Parameters:
Model Capacity (T) Inlet quantity(t/h) Power (kw) Rotary speed(r/min) Area(m²)
TD-1 5-8 0.6-1 9.5 1-8 25
TD-2 12-15 1.5-2.5 13 1-8 35
TD-3 15-20 2.5-3.5 18.5 1-8 45
TD-4 35-42 4-5 26 1-6 60
TD-5 50-60 5-6 33.5 1-6 80
TD-6 70-85 6-7 37 1-6 100
Note  Moisture content below 65% if the moisture exceeds you can use dehydrator first

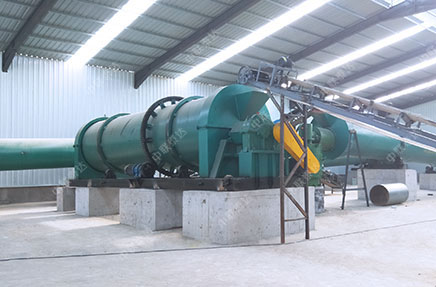

Client Plant


Chicken drying production line in Hebei Province

Average capacity:60t/h
Raw material:river sand
Raw material moisture:55%
Final moisture:under 5%
Equipment:conveyor,burner,dryer,dust collector,hopper,elevator and so on.

Note: No further notice if the technical parameters change.
