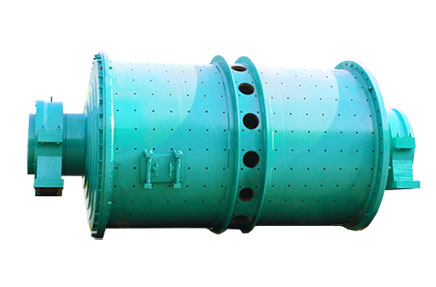

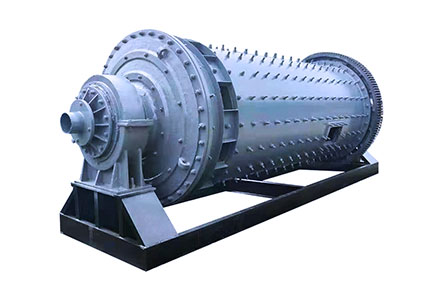

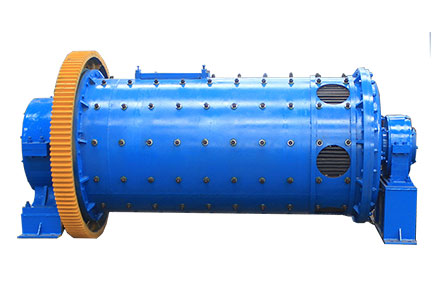

Rod Mill

【Effective Volume】: 1-42.8m³

【Capacity】:2-257t/h

【Power】:15-1120KW

【Processible Materials】:Quartz, iron ore, copper ore, gold, construction waste, glass, cement clinker, etc

E-mail: service@tdaxy.com

get a quote online faq
Advantages:

1. When the diameter of rod mill is less than 3200mm its conventional configuration is using rolling bearing instead of bearing bush sliding bearing energy saving 10% - 20%;

2. When the diameter of rod mill is more than 2700mm its conventional configuration is using slow driving for maintenance installing liner use;
3. When the diameter of rod mill is less than 1500mm its conventional configuration is monolithic large chassis reducing the installation time and installation requirements;
4. When the power of rod mill is less than 110 KW it uses cage asynchronous motor; When the power of rod mill is more than 110 KW it uses wire wound asynchronous motor; When the power of rod mill is more than 400 KW it can use high pressure (6 KV or 10 KV) asynchronous motor or the high voltage (6 KV or 10 KV) synchronous motor;
5. Drum Feeder Spiral Feeder and Joint Feeder are available for meeting different working condition;
6. The gear lubrication mode has grease lubrication thin oil lubrication and automatic oil mist lubrication for meeting different working condition;
7. The bearing lubrication has manual and electric grease lubrication pump to select and it can realize lubrication automation;
8. There are a variety of liner plates type to select. Compared to A series standard type B series energy-saving type can save energy 10% - 20%

Products:

Taida series rod mill has certain selective grinding effect in the grinding process because of the grinding medium and ore are line contacted. The product particle size is uniform, and excessive grinding ore grain is little .It is widely used in fine crushing and grinding operation of feldspar, quartz, abrasive, refractory material, cement, steel grit, slag, copper ore, iron ore, gold ore grit and other hard or brittle material.

Technical Parameters:
Model Effective volume (m3) Max. steel rod load(t) Capacity (t/h) Power (kW) Weight (t)
φ900×1800 1 2.3 2-6 15 4.2
φ900×2100 1.1 2.5 2.2-6.6 18.5 4.9
φ1200×2400 2.4 5.4 4.8-14 30 8.7
φ1200×3000 3 6.8 6-18 37 13
φ1500×3000 4.8 11 9.6-29 75 15
φ1500×4500 7.1 16 14-43 110 16
φ1830×3000 7.1 16 14-43 130 28
φ1830×4500 10.6 24 21-64 155 32
φ2100×3000 9.4 21 19-56 155 42
φ2100×3600 11.3 25 23-68 180 44
φ2100×4000 12.6 28 25-76 210 50
φ2100×4500 14.1 32 28-85 245 52
φ2200×3600 12.5 28 25-75 210 52
φ2200×4500 15.6 35 31-94 245 54
φ2400×3600 15 34 30-90 280 60
φ2400×4500 18.7 42 37-112 320 71
φ2700×3600 18.8 42 38-113 380 82
φ2700×4500 23.5 53 47-141 480 90
φ3200×4500 33.5 75 67-201 800 137
φ3600×4500 42.8 96 86-257 1120 200

Note: No further notice if the technical parameters change.
